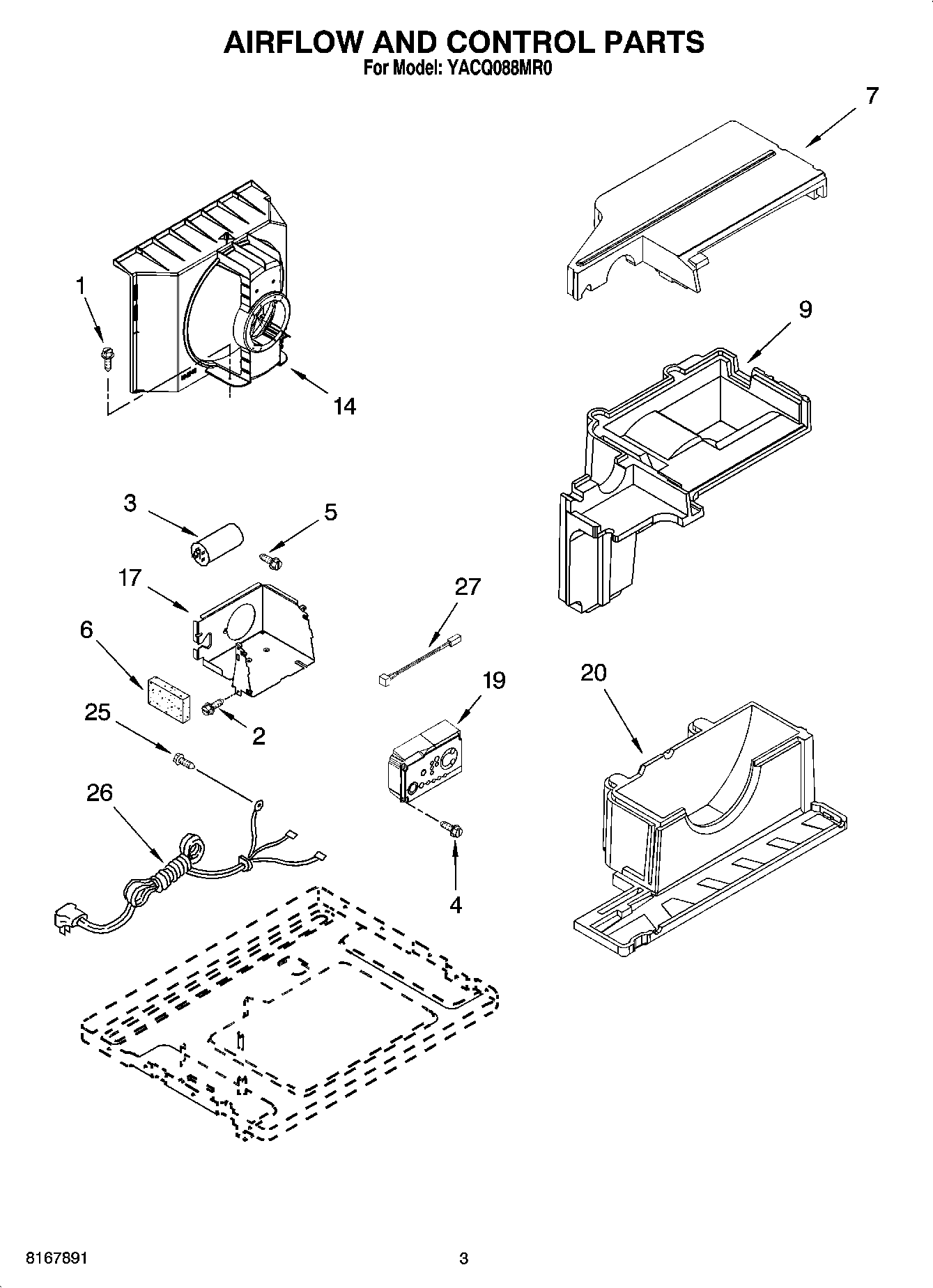

YACQ088MR0 02 – AIR FLOW AND CONTROL PARTS

YACQ088MR0 02 – AIR FLOW AND CONTROL PARTS

Written by

in

YACQ088MR0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	WP90767 Whirlpool Screw
2	WP3196557 Whirlpool Screw
3	Capacitor, Running
4	Screw
5	Screw
6	Seal, Control Box
7	Hood, Air Housing
9	Housing, Top
14	Shroud, Condenser
17	Box, Control
19	Panel, Control
20	Housing, Air- Bottom
25	Screw
26	Cable, Appliance
27	Thermistor
