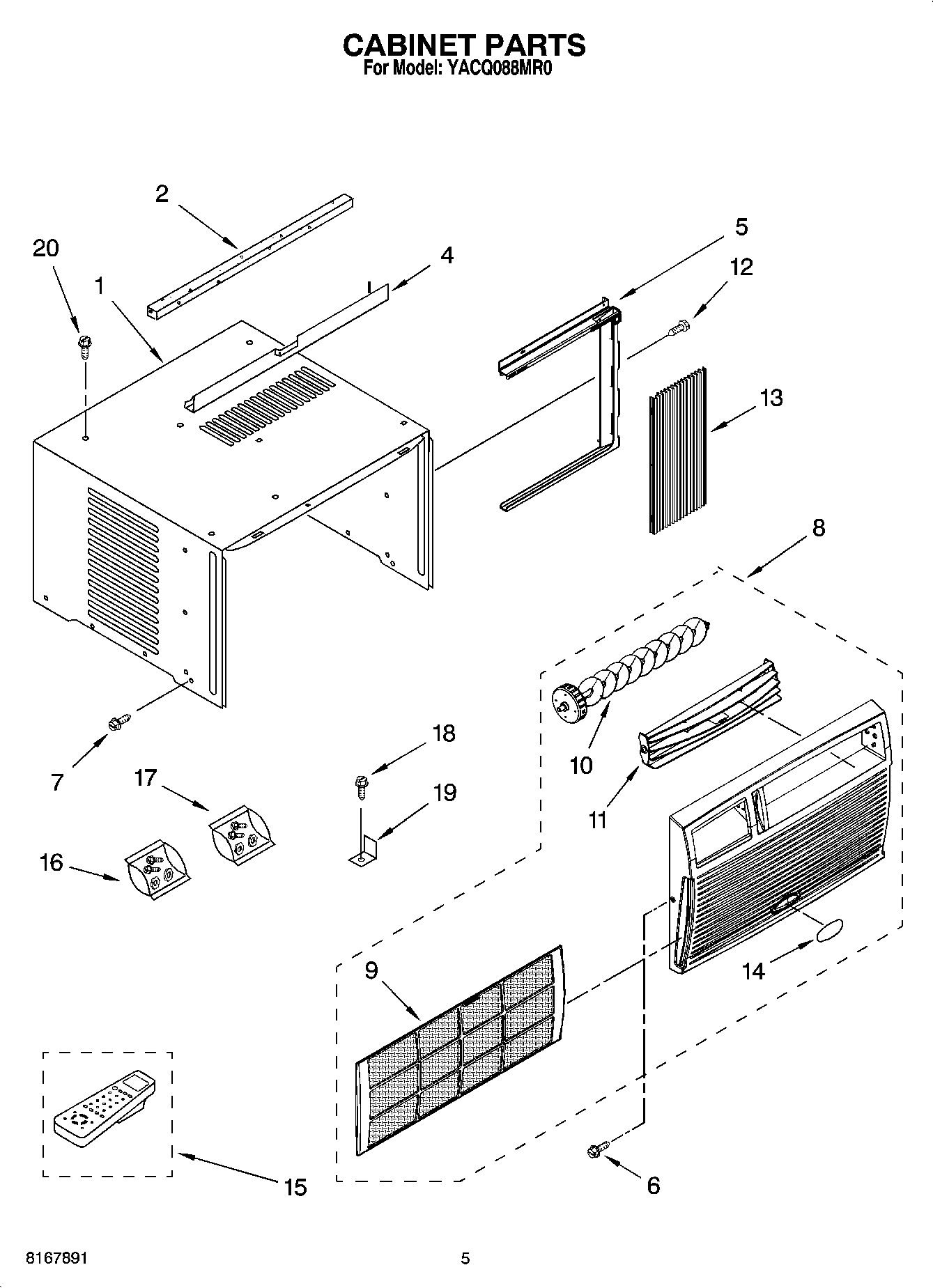

YACQ088MR0 03 – CABINET PARTSadmin2025-04-26T11:18:06+00:00YACQ088MR0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | Seal, Meeting Rail |
| 4 | Channel, Top |
| 5 | Frame, Curtain (Left Side) |
| 5 | Frame, Curtain (Right Side) |
| 6 | WP3196557 Whirlpool Screw |
| 7 | Screw, |
| 8 | Front, Assembly |
| 9 | Filter |
| 10 | Louver, Vertical |
| 11 | Louver, Horizontal |
| 12 | WP90767 Whirlpool Screw |
| 13 | Curtain |
| 14 | WP2213265 Whirlpool Refrigerator Nameplate |
| 15 | Control, Remote |
| 16 | Bag, Accessory |
| 17 | Bag, Accessory For Curtains |
| 18 | Screw |
| 19 | Bracket, Window Lock |
| 20 | WP489478 Whirlpool Refrigerator Screw |
