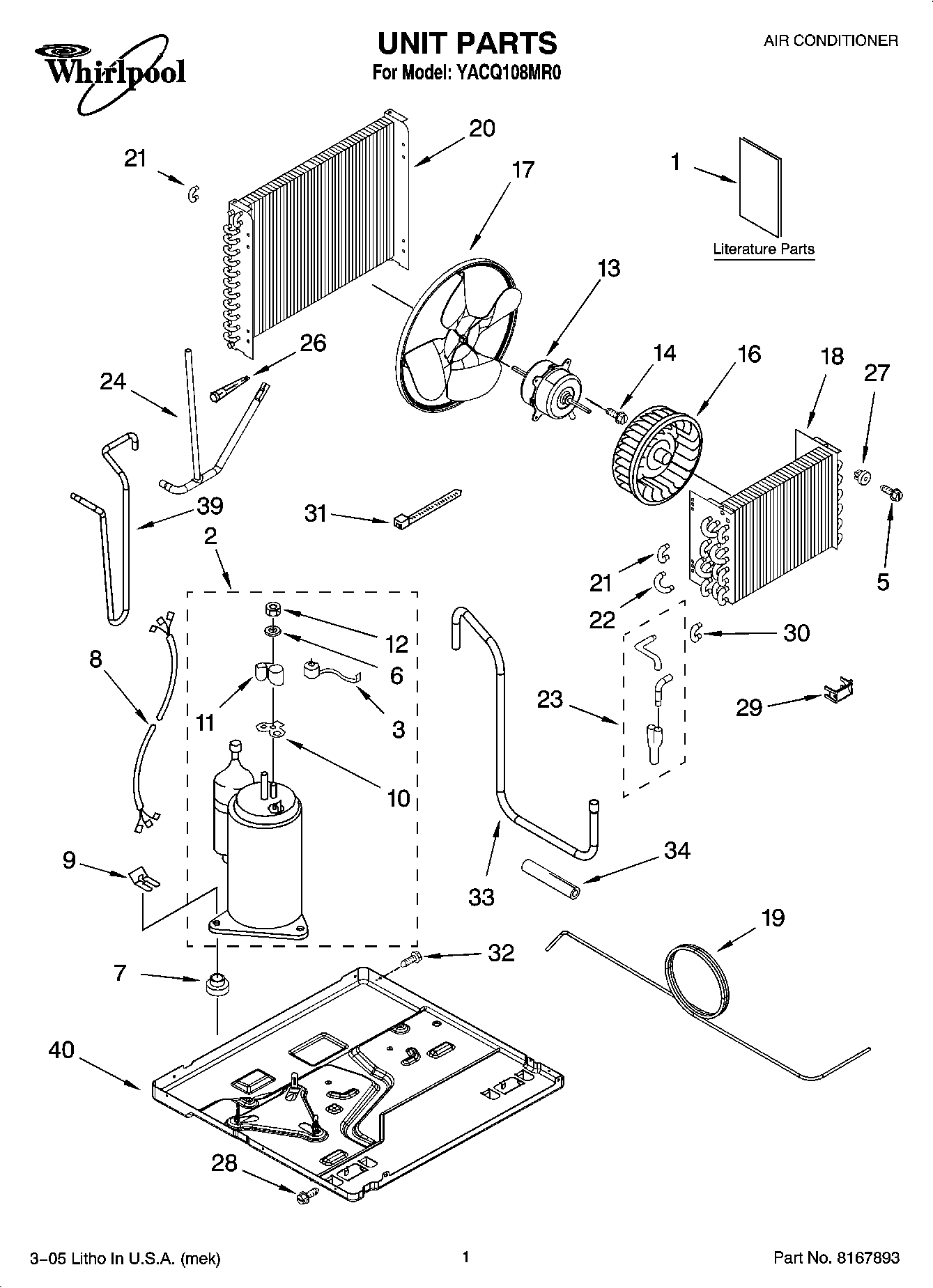

YACQ108MR0 01 – UNIT PARTS

YACQ108MR0 01 – UNIT PARTS

Written by

in

YACQ108MR0 01 – UNIT PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
2Compressor
3WP8209236 Whirlpool Overload Relay
5WP98165 Whirlpool Screw
6Gasket, Nut
7Grommet
8Wiring Harness, Compressor
9Clip, Compressor
10Gasket, Terminal Cover
11Cover, Terminal
12W10833054 Whirlpool Air Conditioner Mounting Nut
13Motor, Fan
14Screw
16Wheel, Blower
17Blade, Fan
18Evaporator
19Tube, Restrictor
20Condenser
21Bend, Return
22Bend, Return
23Manifold Assembly
24Tube, Outlet
26WP1162526 Whirlpool Air Conditioner Strainer
27Grommet, Screw
28Louver, Vertical
29Clip, Temperature Anticipator
30Bend, Return
31Tie, Cable
32WP489464 Whirlpool Refrigerator Screw
33Tube, Suction (Includes Item 34)
34Seal, Suction Tube
39Tube, Discharge
40Base
40REFRIGERANT CHARGE 21.00 oz.
