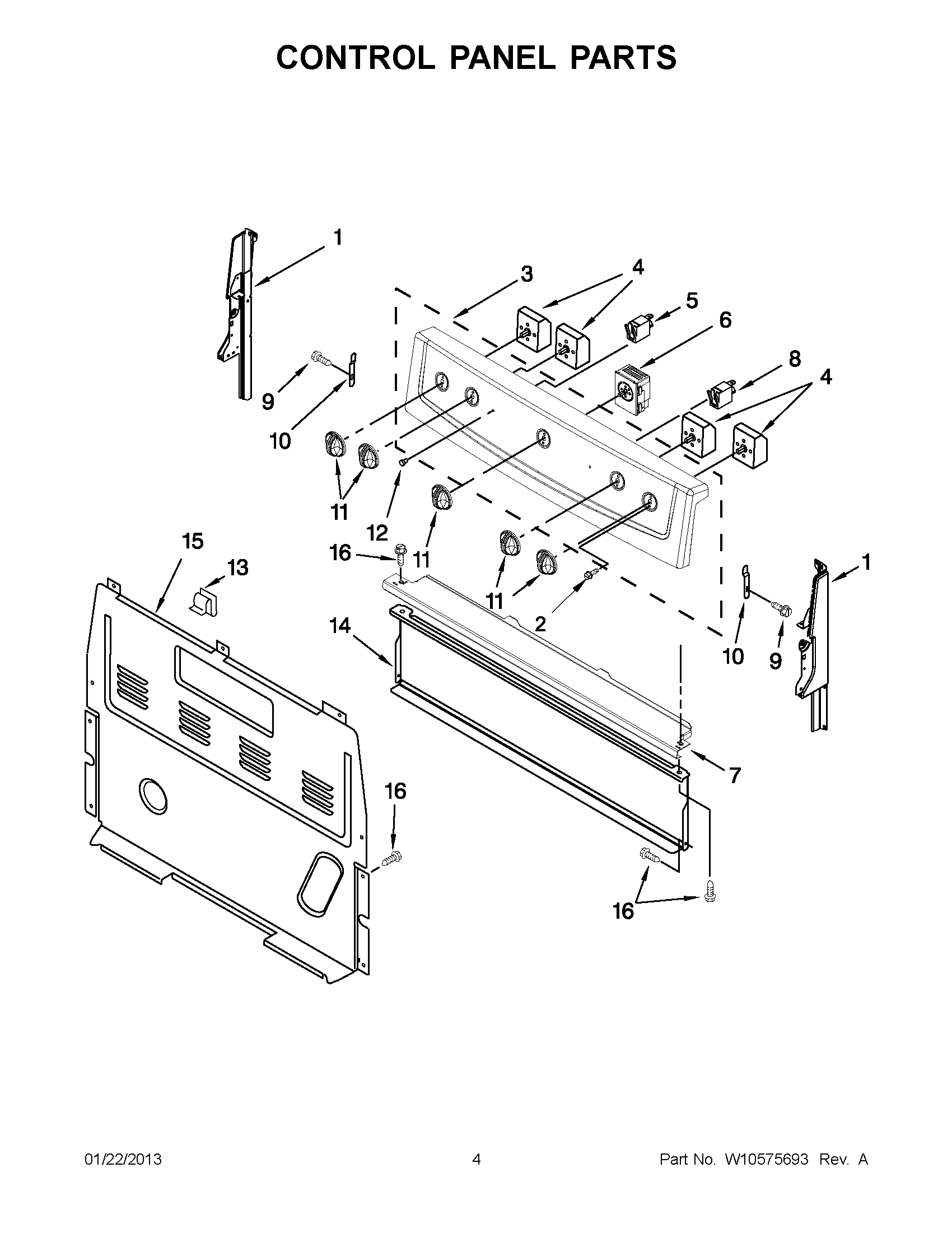

YACR3230BCW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (LEFT))
1ENDCAP (WHITE (RIGHT))
2SCREW
3PANEL, BACKGUARD (WHITE)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6CONTROL, ELECTRIC
7BRACKET, CONSOLE MOUNTING
8MAY 8523266
9SCREW
10CLIP, SPRING
11KNOB, INFINITE (WHITE)
12MAY 3196068
13MAY 8273564
14SHIELD, HEAT
15COVER, UPPER REAR
16SCREW
