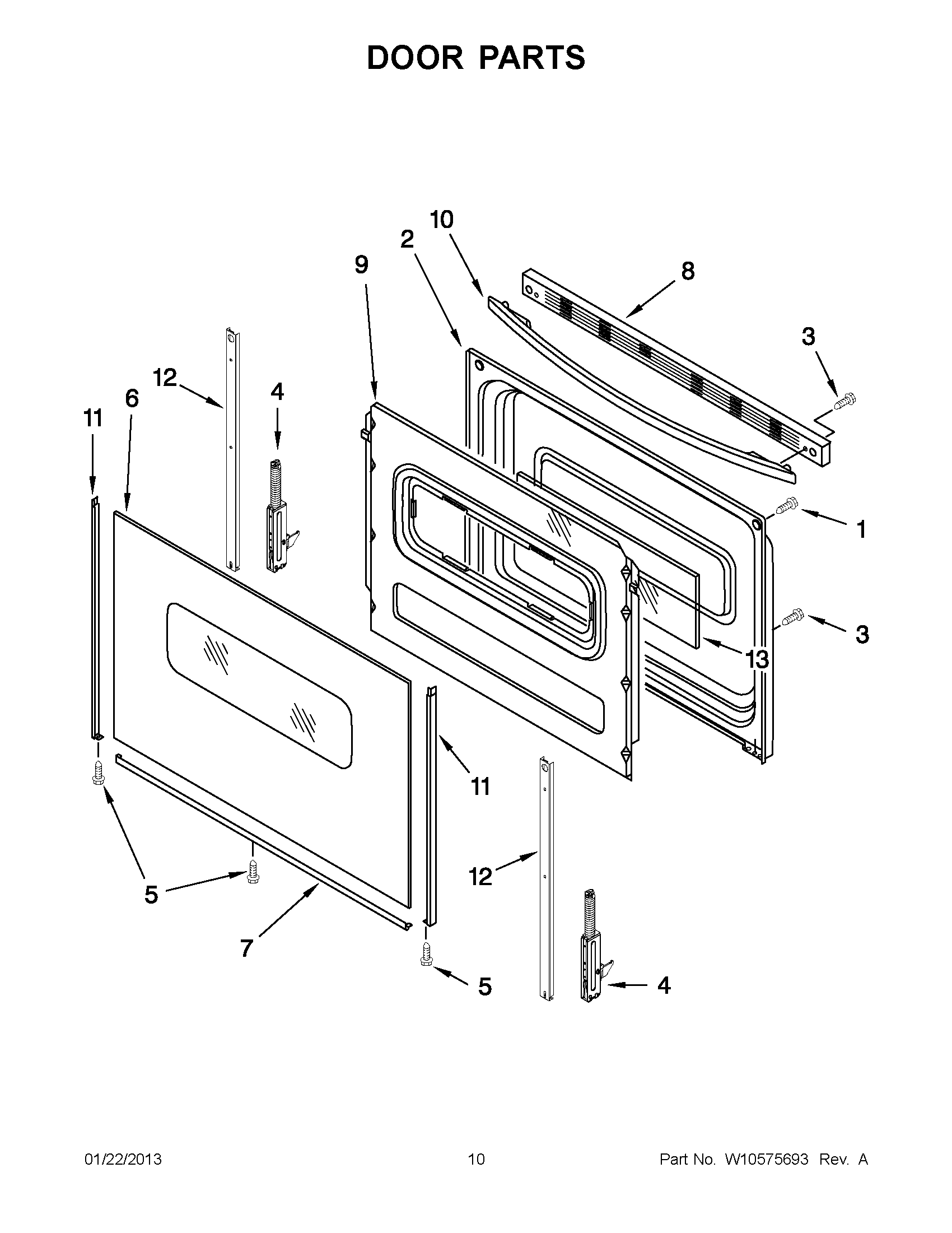

YACR3230BCW0 05 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER-DOOR
3	MAY W10031780
4	HINGE, ACTIVE
4	HINGE, DOOR (PASSIVE)
5	SCREW
6	GLASS, OUTER
7	TRIM, LOWER (WHITE)
8	TRIM, TOP (WHITE)
9	MAY 9761500
10	HANDLE, DOOR (WHITE)
11	TRIM, SIDE (WHITE (RIGHT))
11	TRIM, SIDE (WHITE (LEFT))
12	STRAP, DOOR
13	MAY 9758163
