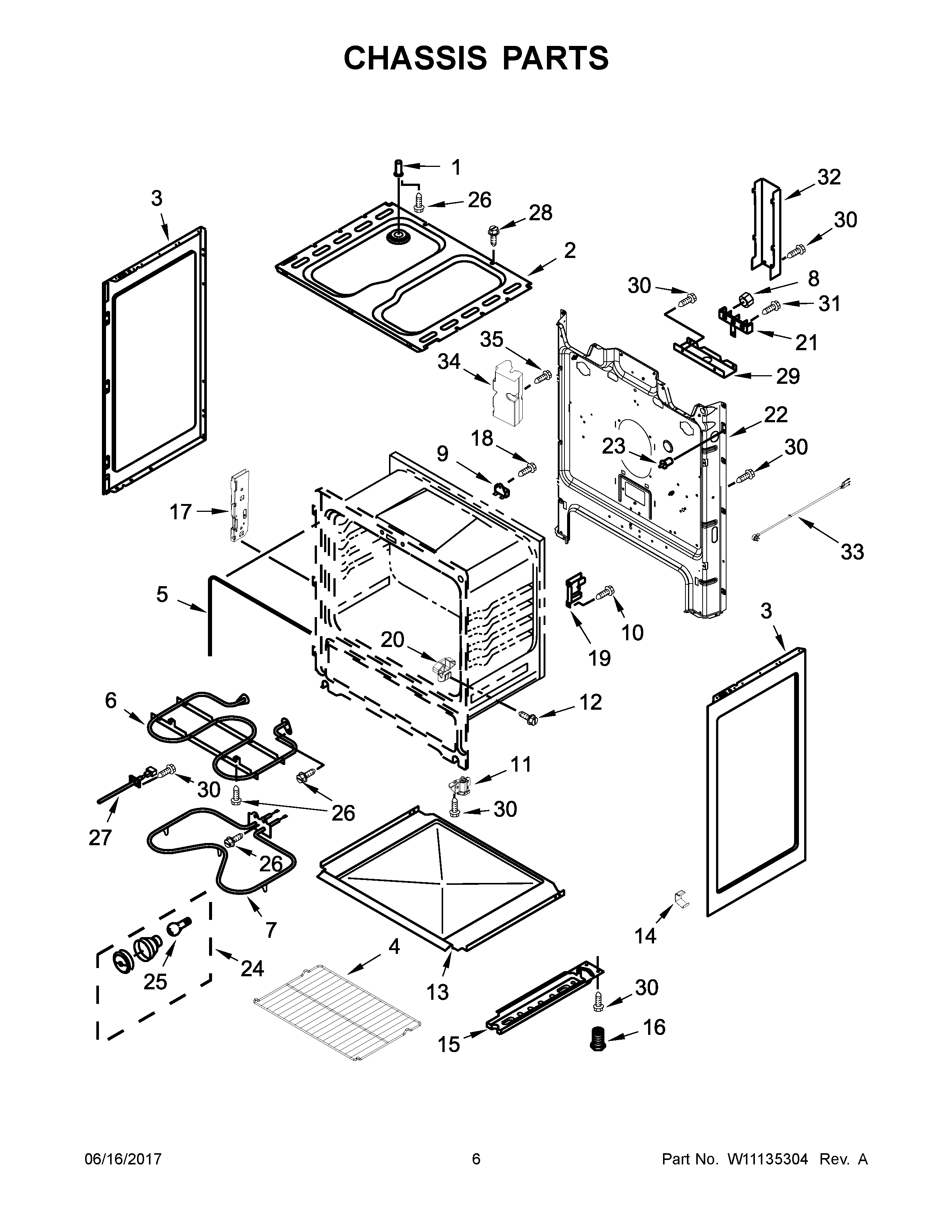

YACR4303MFS1 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, BACK
1	MAY 3169143
2	BOX, BURNER
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	RACK, OVEN
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	WP7103P027-60 Whirlpool Nut
9	FUSE, THERMAL
10	SCREW
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15A	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	RECEIVER, HINGE
18	SCREW
19	CLIP, OVEN SUPPORT
20	GLIDE, DRAWER FRONT
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SCREW
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	SCREW
27	SENSOR, OVEN
28	SCREW
29	BRACKET, SERVICE
30	SCREW
31	SCREW
32	COVER, TERMINAL BLOCK
33	CORD, POWER
34	COUNTERWEIGHT
35	SCREW
