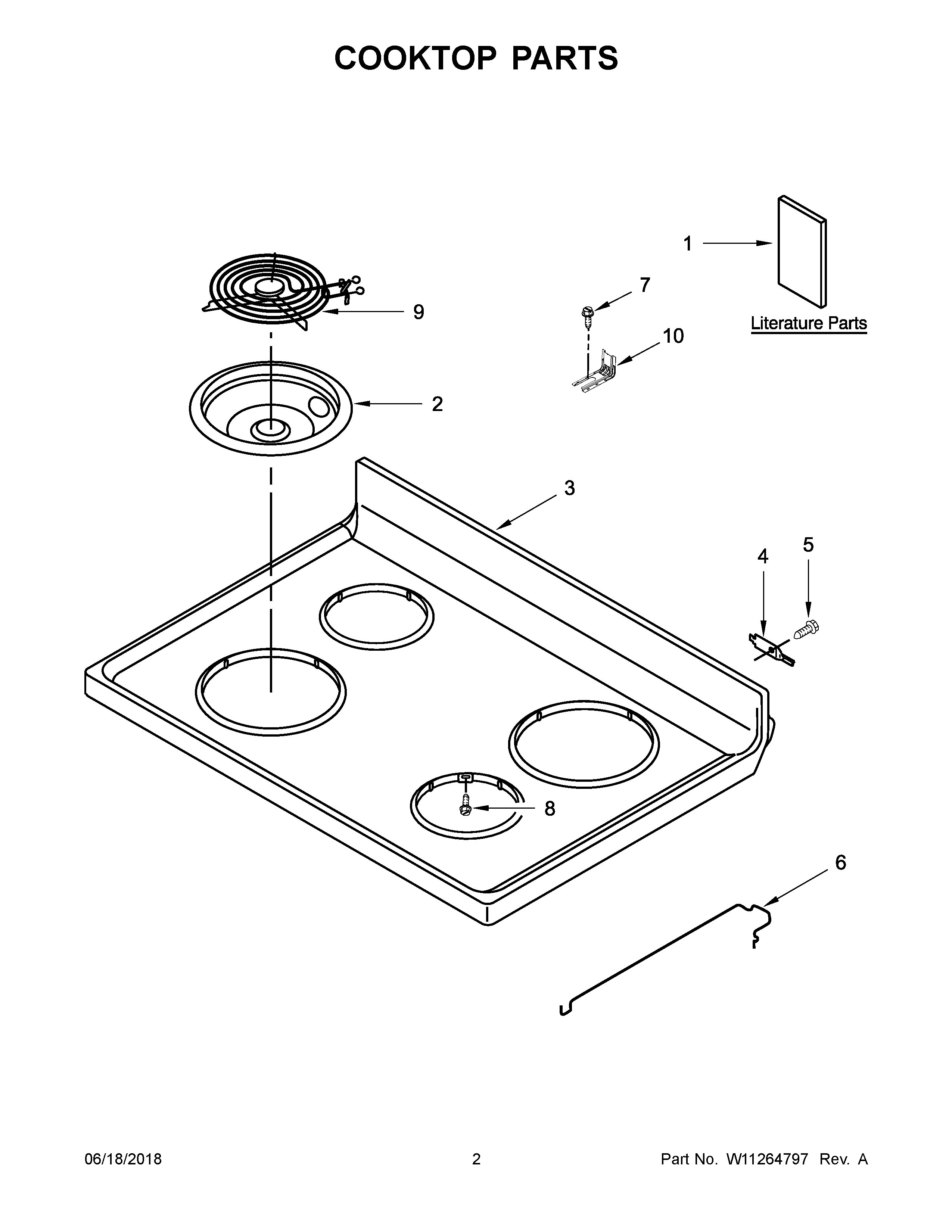

YACR4303MFS2 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, MAIN
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
1AMAY W11241249
1BINSTRUCTIONS, INSTALLATION
1MAY W11235899
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
9AELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
10BRACKET, ANTI-TIP
