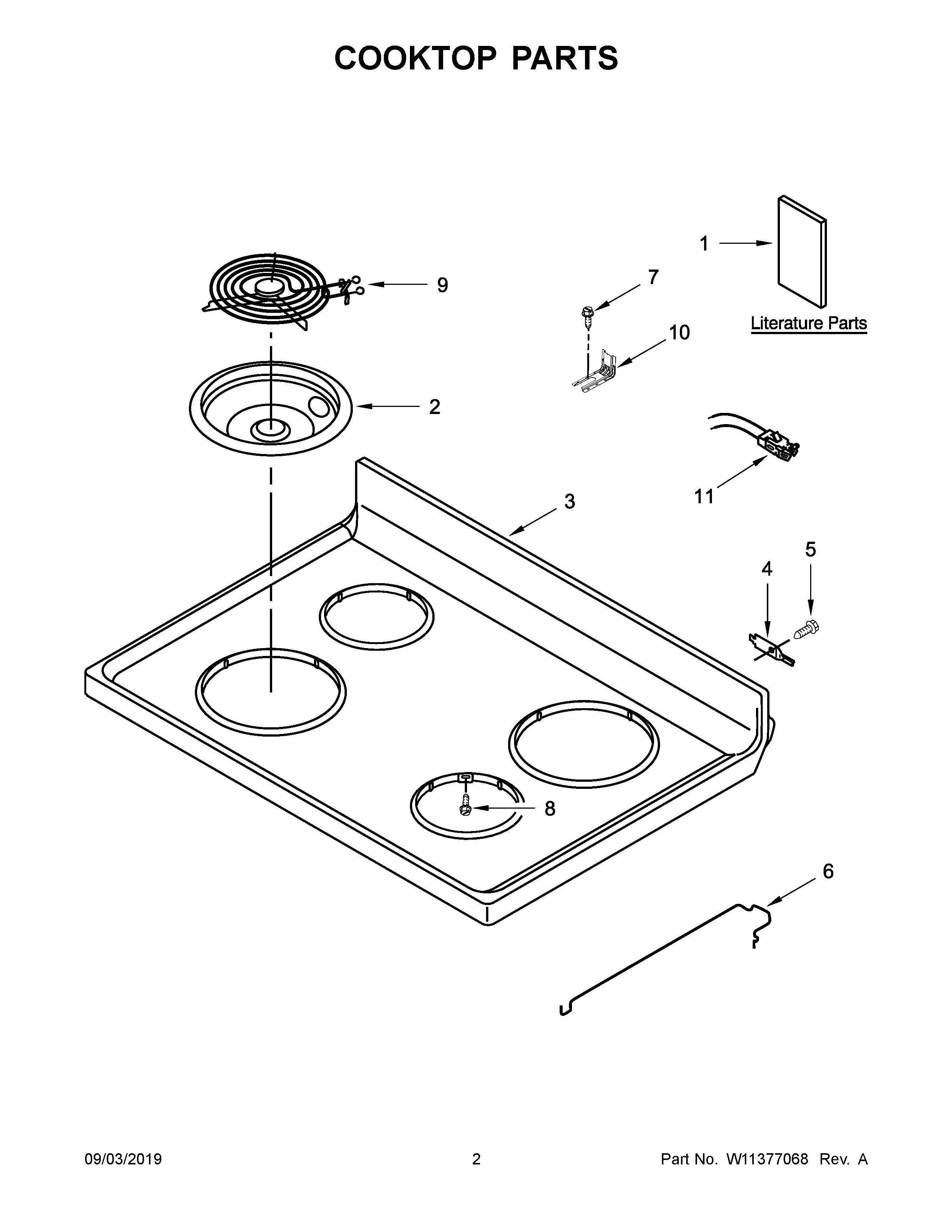

YACR4303MFS4 02 – COOKTOP PARTSadmin2025-04-26T08:49:05+00:00YACR4303MFS4 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | KIT, BARE WIRE ADAPTER BLOCK |
| NI | MAY W11328418 |
| NI | HARNESS, COOKTOP |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY W11235899 |
| 1B | INSTRUCTIONS, INSTALLATION |
| 1A | MAY W11241249 |
| 2 | BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR) |
| 2A | BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR) |
| 3 | COOKTOP (BLACK) |
| 4 | HINGE, COOKTOP |
| 5 | SCREW |
| 6 | ROD, SUPPORT |
| 7 | SCREW, ANTI-TIP KIT |
| 8 | SCREW |
| 9 | ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR) |
| 9A | ELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR) |
| 10 | BRACKET, ANTI-TIP |
| 11 | RECEPTACLE, ELEMENT |
