YACR4303MFS4 03 – CONTROL PANEL PARTS

YACR4303MFS4 03 – CONTROL PANEL PARTS

Written by

in

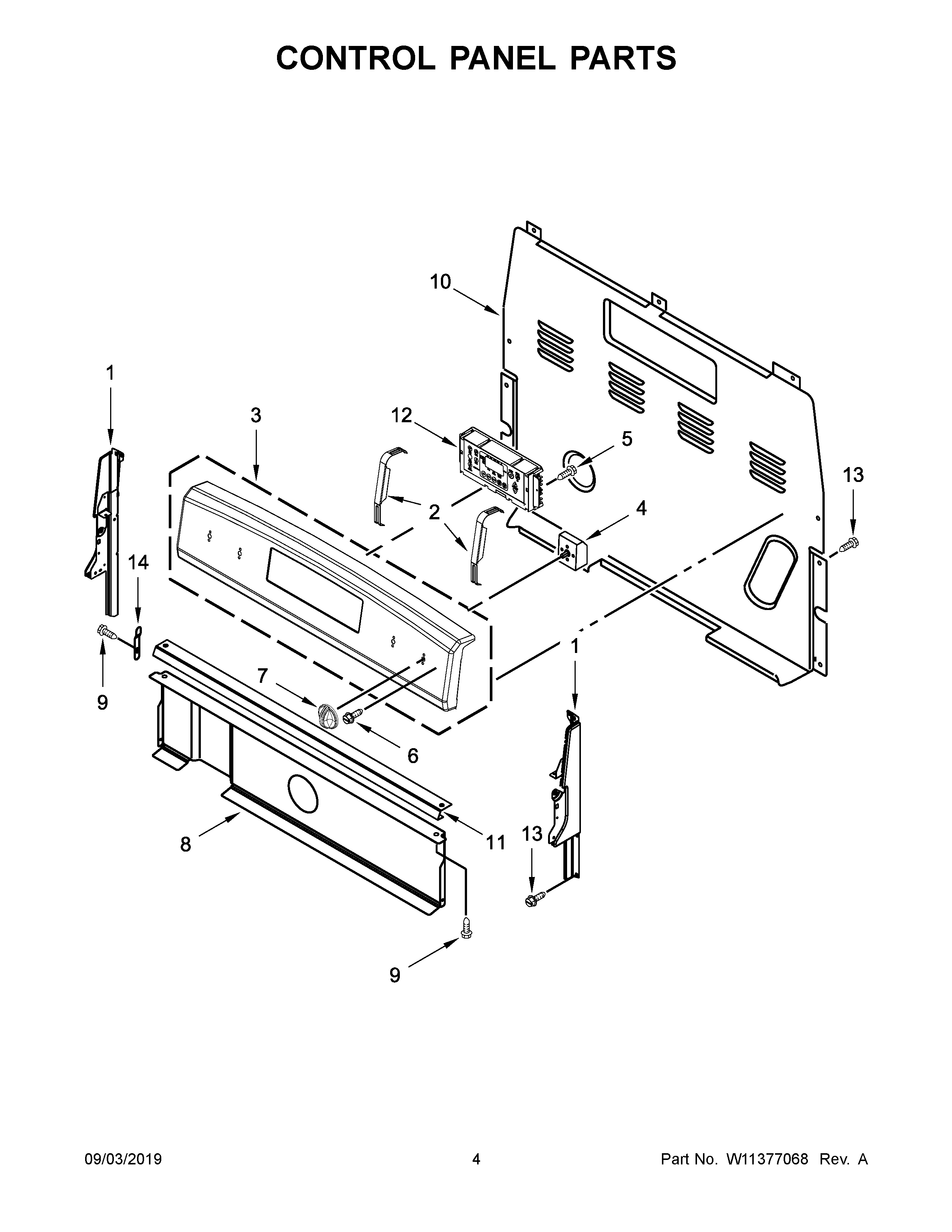

YACR4303MFS4 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (BLACK (RIGHT))
1ENDCAP (BLACK (LEFT))
2BRACKET, CONTROL
3PANEL, CONTROL (STAINLESS)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5SCREW
6SCREW
7KNOBS (STAINLESS)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12CONTROL (LCC95) (BLACK)
13SCREW
14CLIP, SPRING
