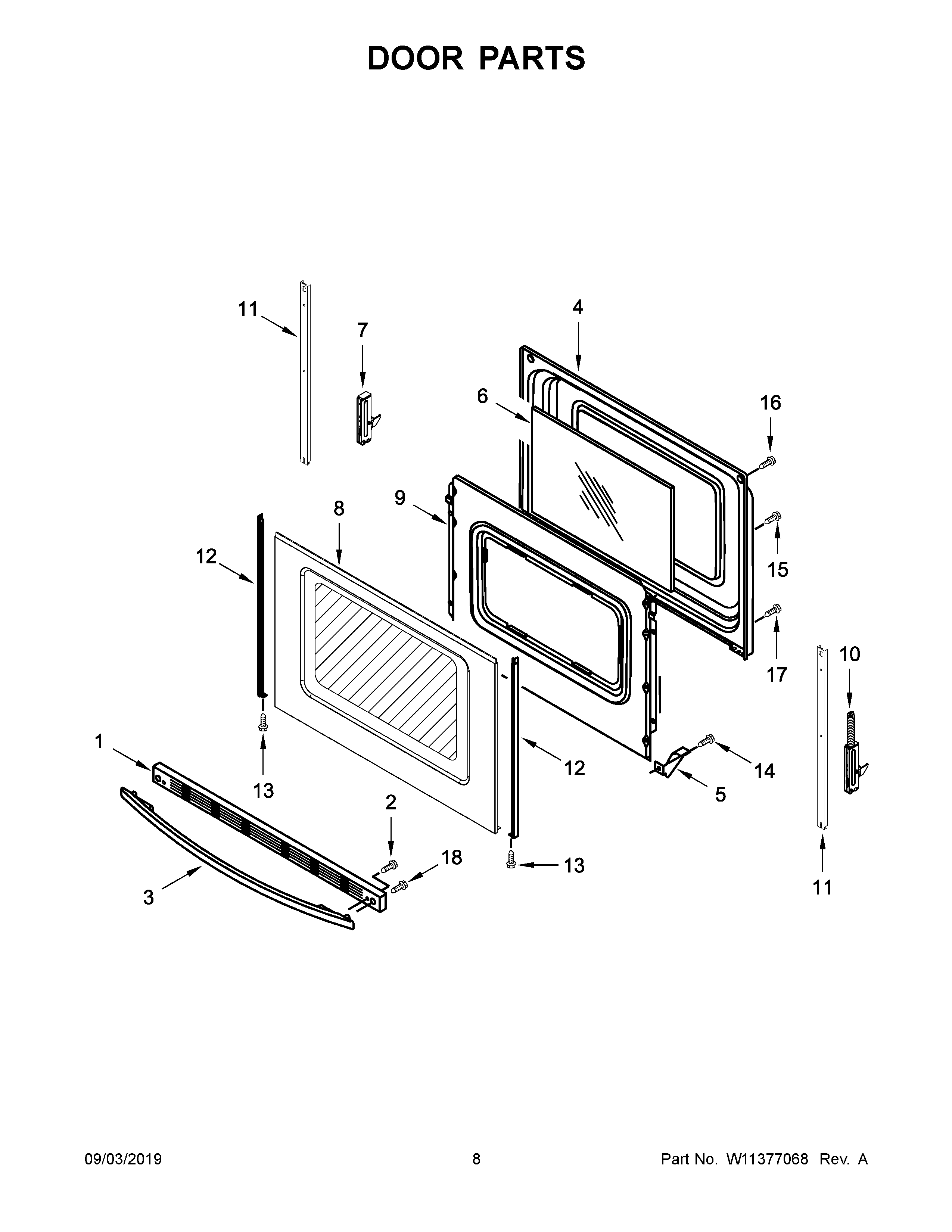

YACR4303MFS4 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	CLIP, PANEL
6	MAY W11367326
7	HINGE, DOOR (PASSIVE)
8	DOOR, OUTER GLASS ASSEMBLY (STAINLESS)
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11	STRAP, DOOR
12	TRIM, SIDE (BLACK (LEFT))
12A	TRIM, SIDE (BLACK (RIGHT))
13	SCREW
14	SCREW
15	SCREW
16	SCREW
17	MAY W10031780
18	SCREW
