YACR4303MFW0 03 – CONTROL PANEL PARTS

YACR4303MFW0 03 – CONTROL PANEL PARTS

Written by

in

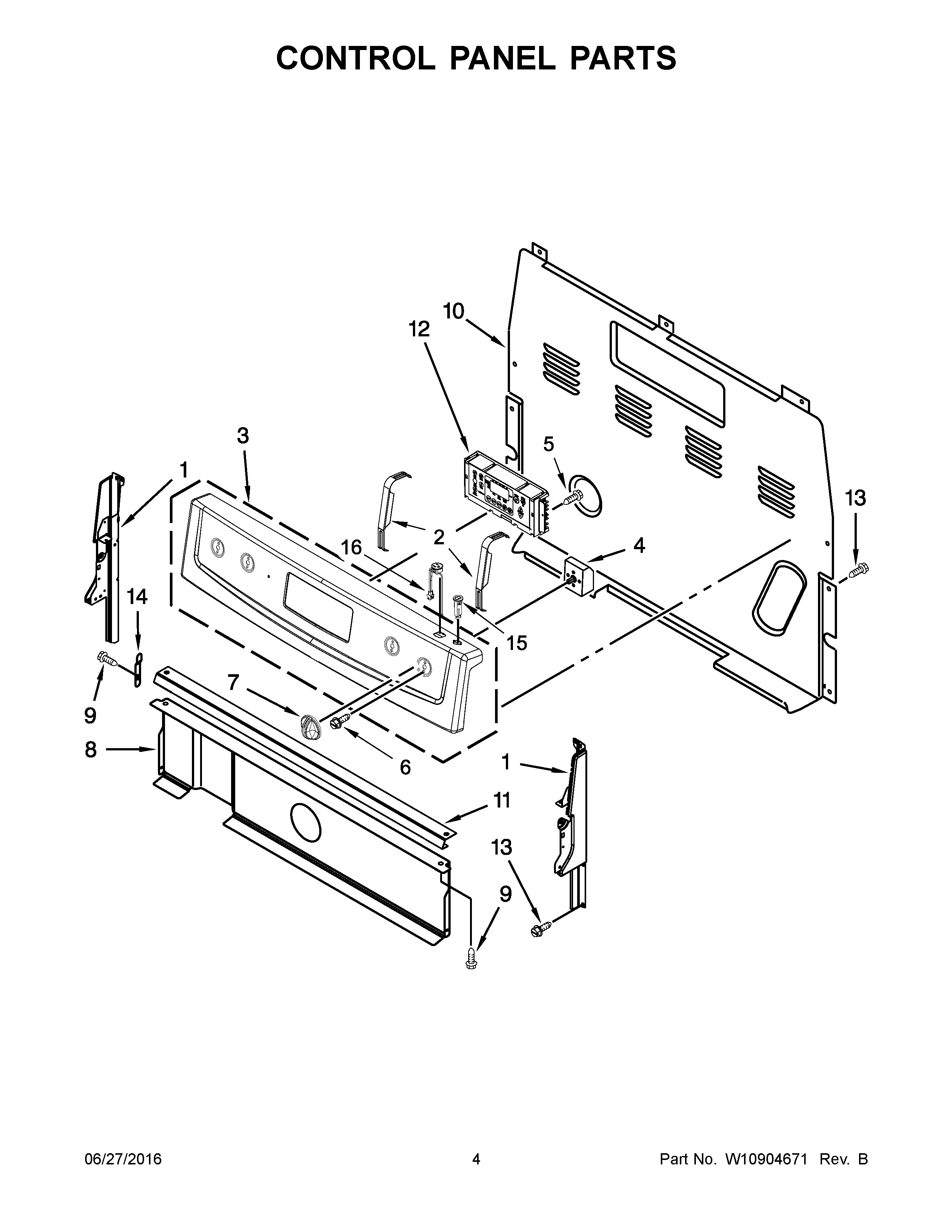

YACR4303MFW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1BENDCAP (WHITE (LEFT))
1CENDCAP (WHITE (RIGHT))
1AENDCAP (BLACK (RIGHT))
2BRACKET, CONTROL
3AMAY W10859278
3MAY W10859277
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5SCREW
6SCREW
7KNOBS (STAINLESS)
7AKNOBS (WHITE)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12CONTROL, LCC180 (BLACK)
12ACONTROL, LCC180 (WHITE)
13SCREW
14CLIP, SPRING
15ABREAKER, CIRCUIT (WHITE)
15BREAKER, CIRCUIT (BLACK)
16ARECEPTACLE, FUSED (WHITE)
16RECEPTACLE, FUSED (BLACK)
