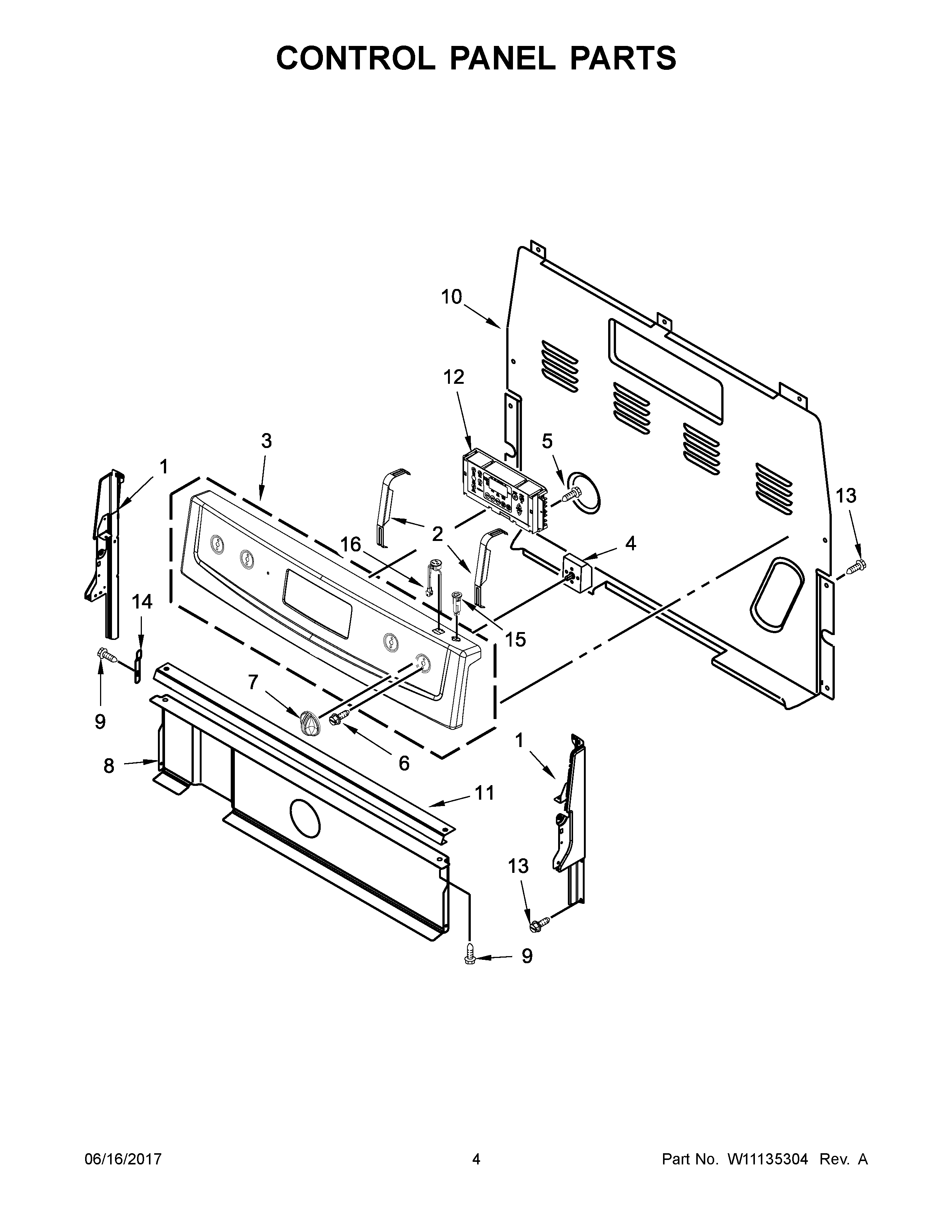

YACR4303MFW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1B	ENDCAP (WHITE (LEFT))
1C	ENDCAP (WHITE (RIGHT))
1A	ENDCAP (BLACK (RIGHT))
2	BRACKET, CONTROL
3A	MAY W10859278
3	MAY W10859277
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	SCREW
6	SCREW
7	KNOBS (STAINLESS)
7A	KNOBS (WHITE)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	BRACKET, CONSOLE MOUNTING
12	CONTROL, LCC180 (BLACK)
12A	CONTROL, LCC180 (WHITE)
13	SCREW
14	CLIP, SPRING
15A	BREAKER, CIRCUIT (WHITE)
15	BREAKER, CIRCUIT (BLACK)
16A	RECEPTACLE, FUSED (WHITE)
16	RECEPTACLE, FUSED (BLACK)
