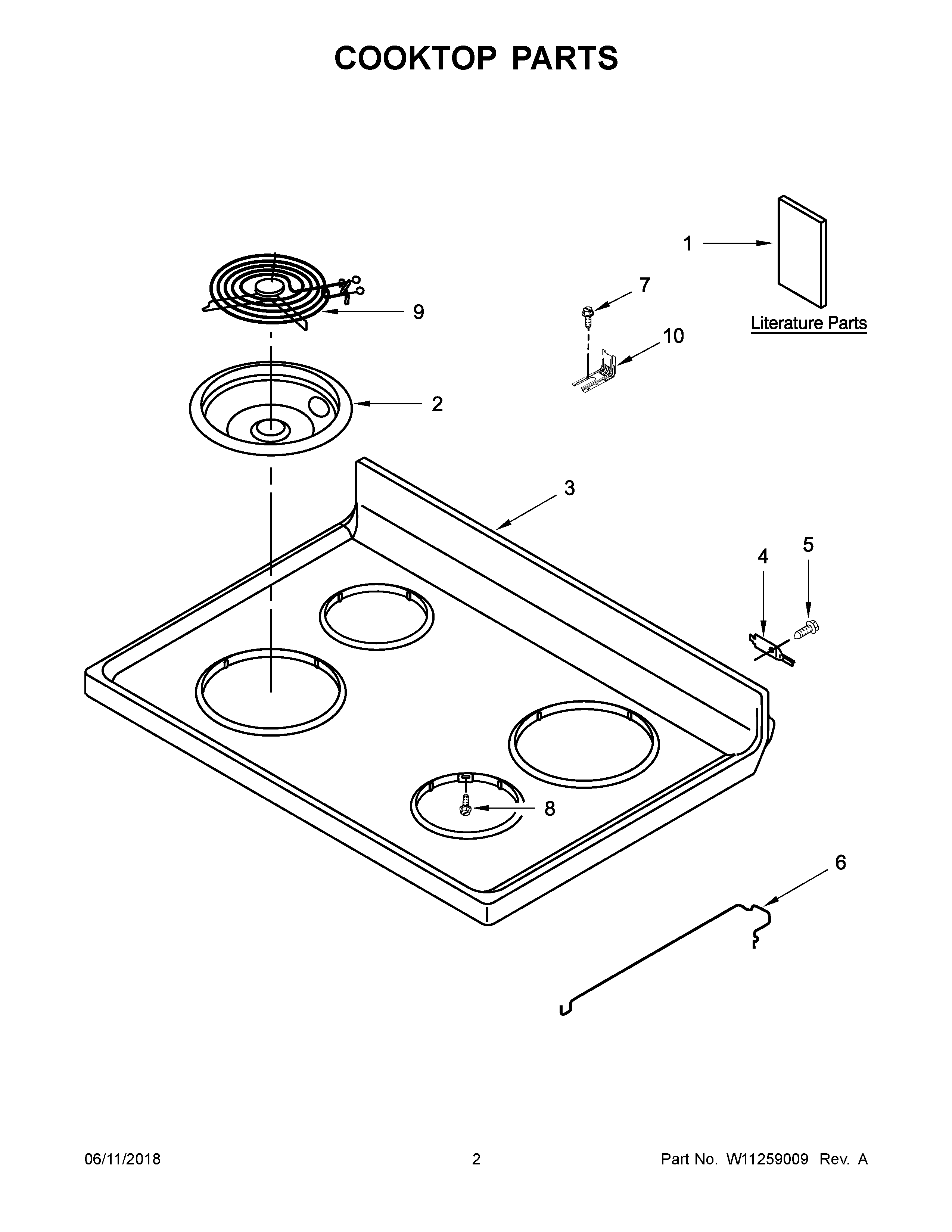

YACR4303MFW2 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP
NI	LINER (NOT A SERVICEABLE PART)
1A	MAY W11241249
1B	INSTRUCTIONS, INSTALLATION
1	MAY W11235899
2	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2A	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3	COOKTOP (WHITE)
4	HINGE, COOKTOP
5	SCREW
6	ROD, SUPPORT
7	SCREW, ANTI-TIP KIT
8	SCREW
9	ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
9A	ELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
10	BRACKET, ANTI-TIP
