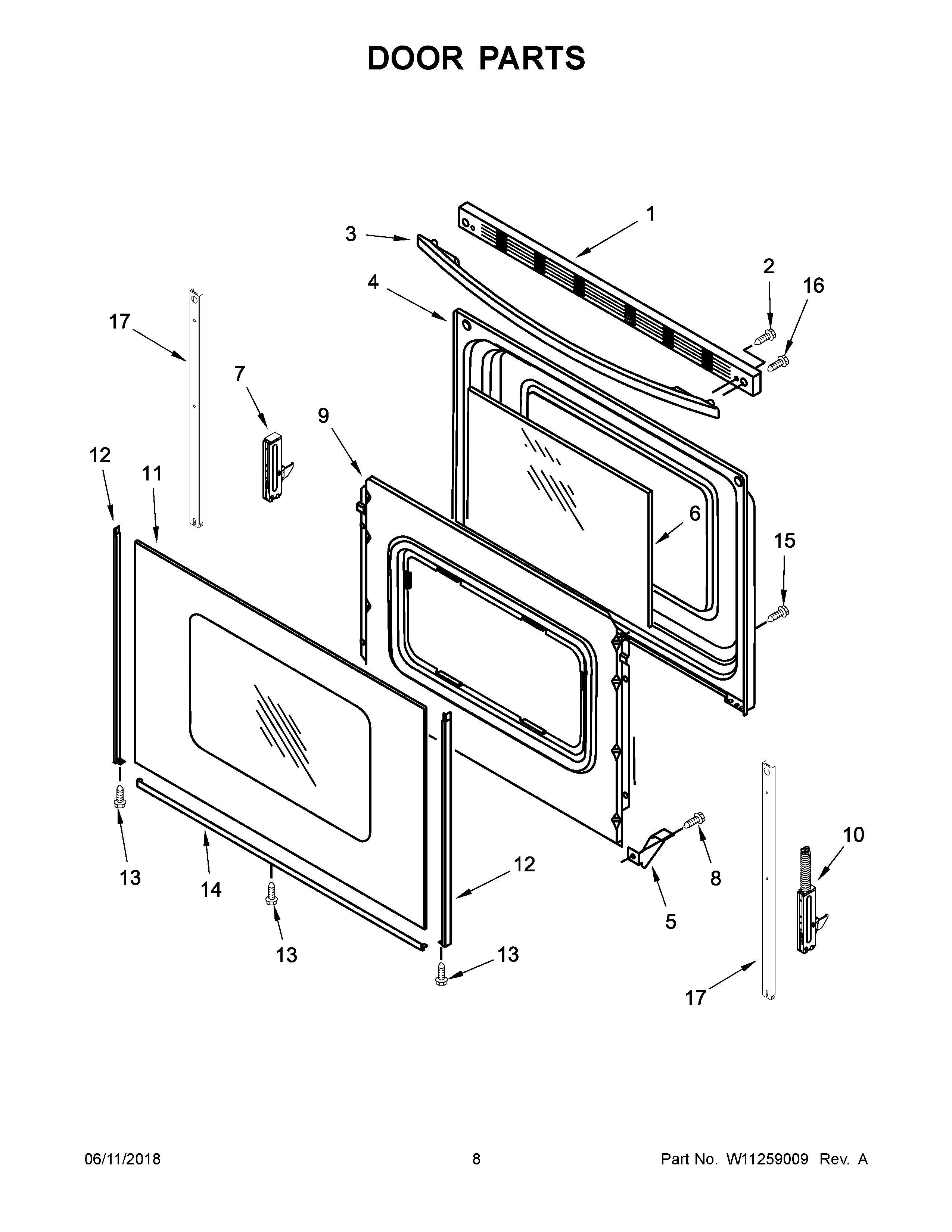

YACR4303MFW2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	HINGE, DOOR (PASSIVE)
8	SCREW
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11	GLASS, OUTER (WHITE)
12A	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14	TRIM, LOWER (WHITE)
15	SCREW
16	SCREW
17	STRAP, DOOR
