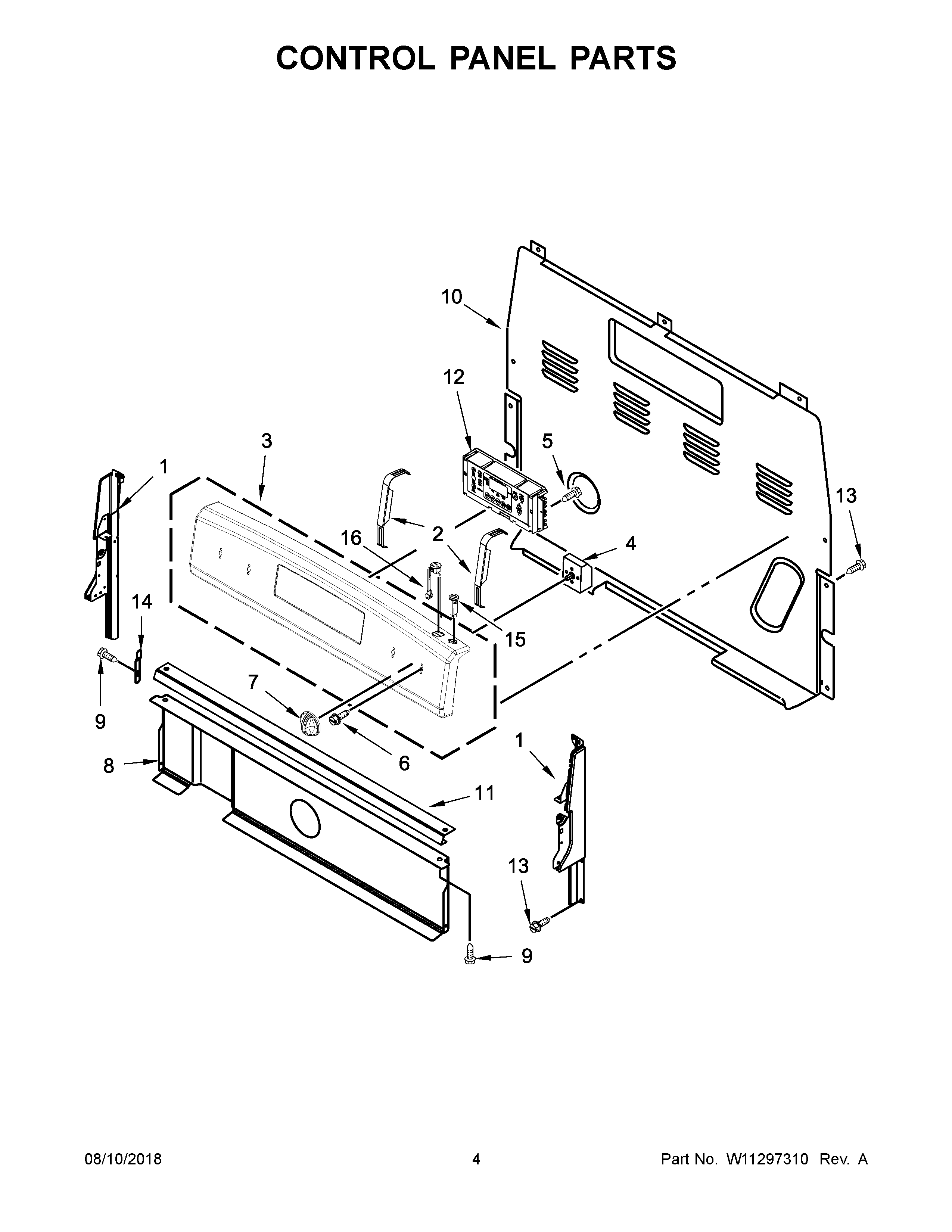

YACR4303MFW3 03 – CONTROL PANEL PARTSadmin2025-04-26T08:48:45+00:00YACR4303MFW3 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1A | ENDCAP (WHITE (RIGHT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 2 | BRACKET, CONTROL |
| 3 | MAY W11157115 |
| 4A | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR) |
| 5 | SCREW |
| 6 | SCREW |
| 7 | KNOBS (WHITE) |
| 8 | SHIELD, HEAT |
| 9 | SCREW |
| 10 | COVER, UPPER REAR |
| 11 | BRACKET, CONSOLE MOUNTING |
| 12 | CONTROL, ELECTRONIC (WHITE) |
| 13 | SCREW |
| 14 | CLIP, SPRING |
| 15 | BREAKER, CIRCUIT (WHITE) |
| 16 | RECEPTACLE, FUSED (WHITE) |
