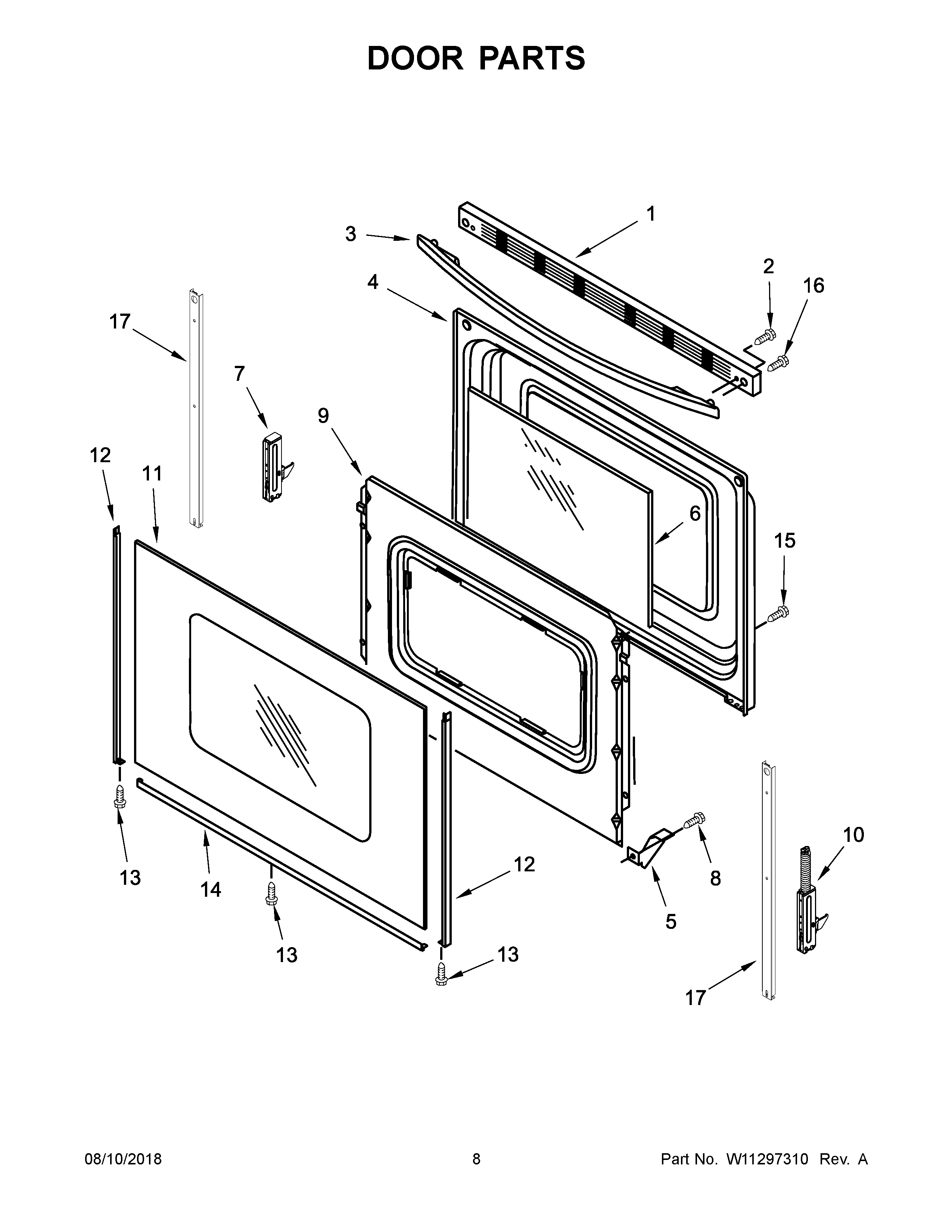

YACR4303MFW3 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
2SCREW
3HANDLE, DOOR (WHITE)
4LINER, DOOR
5CLIP, PANEL
6GLASS, INNER
7HINGE, DOOR (PASSIVE)
8SCREW
9RETAINER, INSULATION
10HINGE, ACTIVE
11GLASS, OUTER (WHITE)
12TRIM, SIDE (WHITE (LEFT))
12ATRIM, SIDE (WHITE (RIGHT))
13SCREW
14TRIM, LOWER (WHITE)
15SCREW
16SCREW
17STRAP, DOOR
