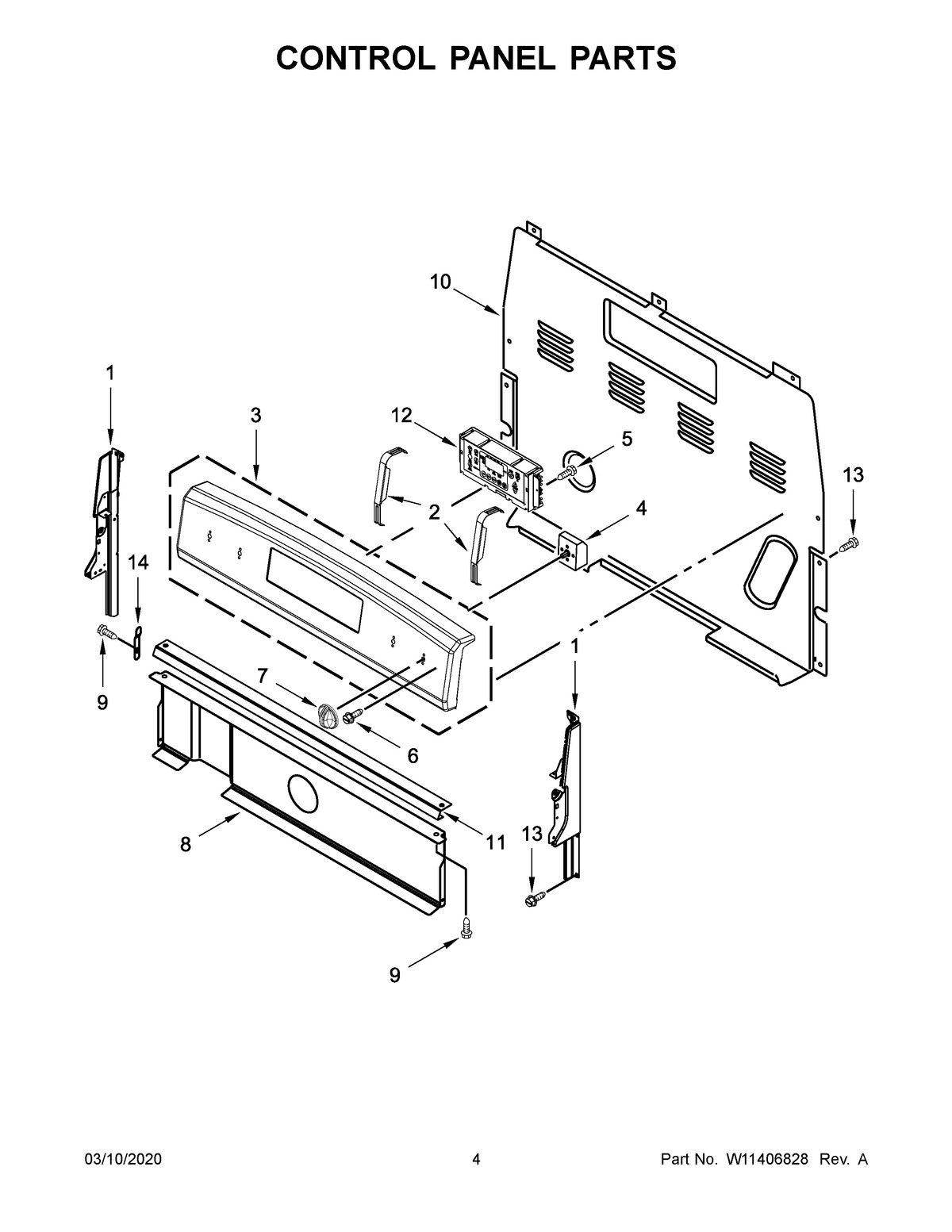

YACR4303MFW5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (LEFT))
1AENDCAP (WHITE (RIGHT))
2BRACKET, CONTROL
3PANEL, CONTROL (WHITE)
4ASWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5SCREW
6SCREW
7KNOBS (WHITE)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12CONTROL, ELECTRONIC (WHITE)
13SCREW
14CLIP, SPRING
