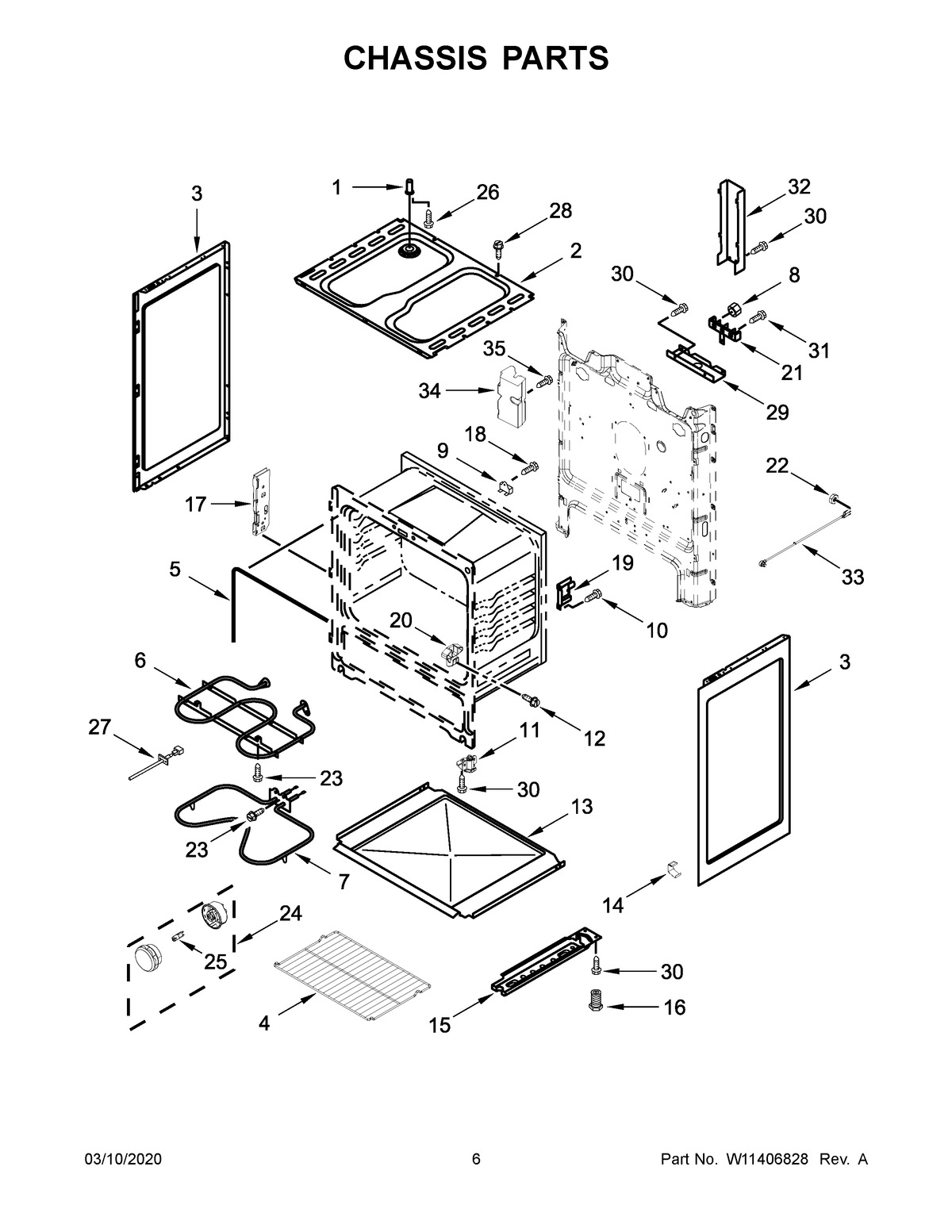

YACR4303MFW5 04 – CHASSIS PARTSadmin2025-04-26T08:49:04+00:00YACR4303MFW5 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | INSULATION, WRAP |
| NI | INSULATION, BACK |
| 1 | TUBE, VENT |
| 2 | BOX, BURNER |
| 3 | PANEL, SIDE (WHITE) |
| 4 | RACK, OVEN |
| 5 | SEAL, DOOR |
| 6 | ELEMENT, BROIL |
| 7 | ELEMENT, BAKE |
| 8 | NUT |
| 9 | FUSE, THERMAL |
| 10 | SCREW |
| 11 | ASSEMBLY, FRONT FOOT |
| 12 | SCREW |
| 13 | RETAINER, INSULATION |
| 14 | CLIP, PANEL |
| 15 | ASSEMBLY, BASE RAIL (LEFT) |
| 15A | ASSEMBLY, BASE RAIL (RIGHT) |
| 16 | FOOT, LEVELING |
| 17 | RECEIVER, HINGE |
| 18 | SCREW |
| 19 | CLIP, OVEN SUPPORT |
| 20 | GLIDE, DRAWER FRONT |
| 21 | BLOCK, TERMINAL |
| 22 | WP7103P027-60 Whirlpool Nut |
| 23 | SCREW |
| 24 | MAY W11175594 |
| 25 | BULB, HALOGEN 40 WATTS |
| 26 | SCREW |
| 27 | SENSOR, OVEN |
| 28 | SCREW |
| 29 | BRACKET, SERVICE |
| 30 | SCREW |
| 31 | SCREW |
| 32 | COVER, TERMINAL BLOCK |
| 33 | CORD, POWER |
| 34 | COUNTERWEIGHT |
| 35 | SCREW |
