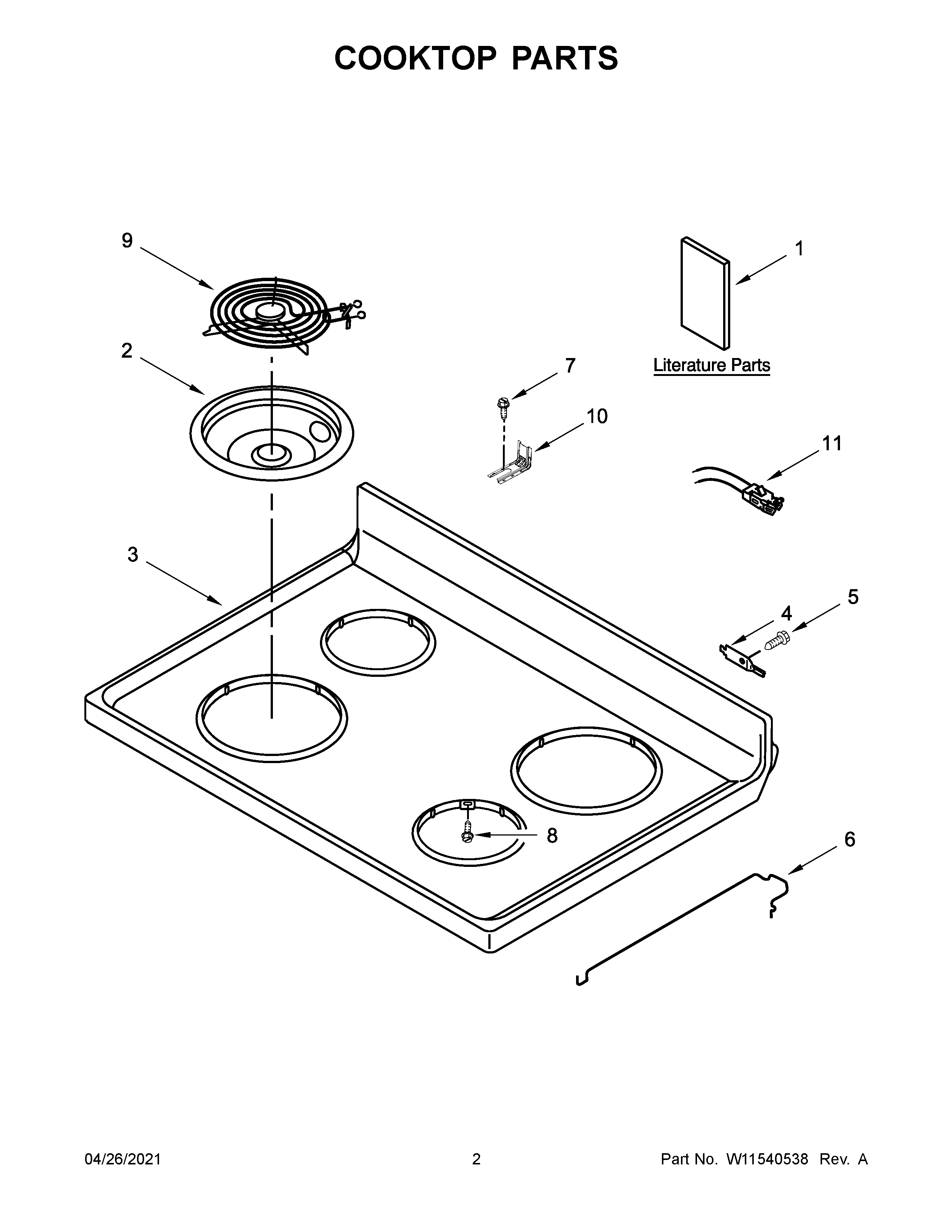

YACR4303MFW6 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	WP4449154 Whirlpool Screw
NI	HARNESS, COOKTOP
NI	WPW10281322 Whirlpool Connector
1B	WIRE DIAGRAM
1A	USE AND CARE GUIDE
1	INSTRUCTIONS, INSTALLATION
2A	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	8195532 Whirlpool Cooktop Power Switch
4	WP3195060 Whirlpool Cooktop Pin
5	WP3196557 Whirlpool Screw
6	WP3195812 Whirlpool Cooktop Rod
7	SCREW, ANTI-TIP KIT
8	WP3196154 Whirlpool Screw Assembly
9A	W11396792 Whirlpool Surface Coil Element
9	ELMNT-SURF
10	W11447673 Whirlpool Range Tip Anchor
11	814399 Whirlpool Receptacle Kit
