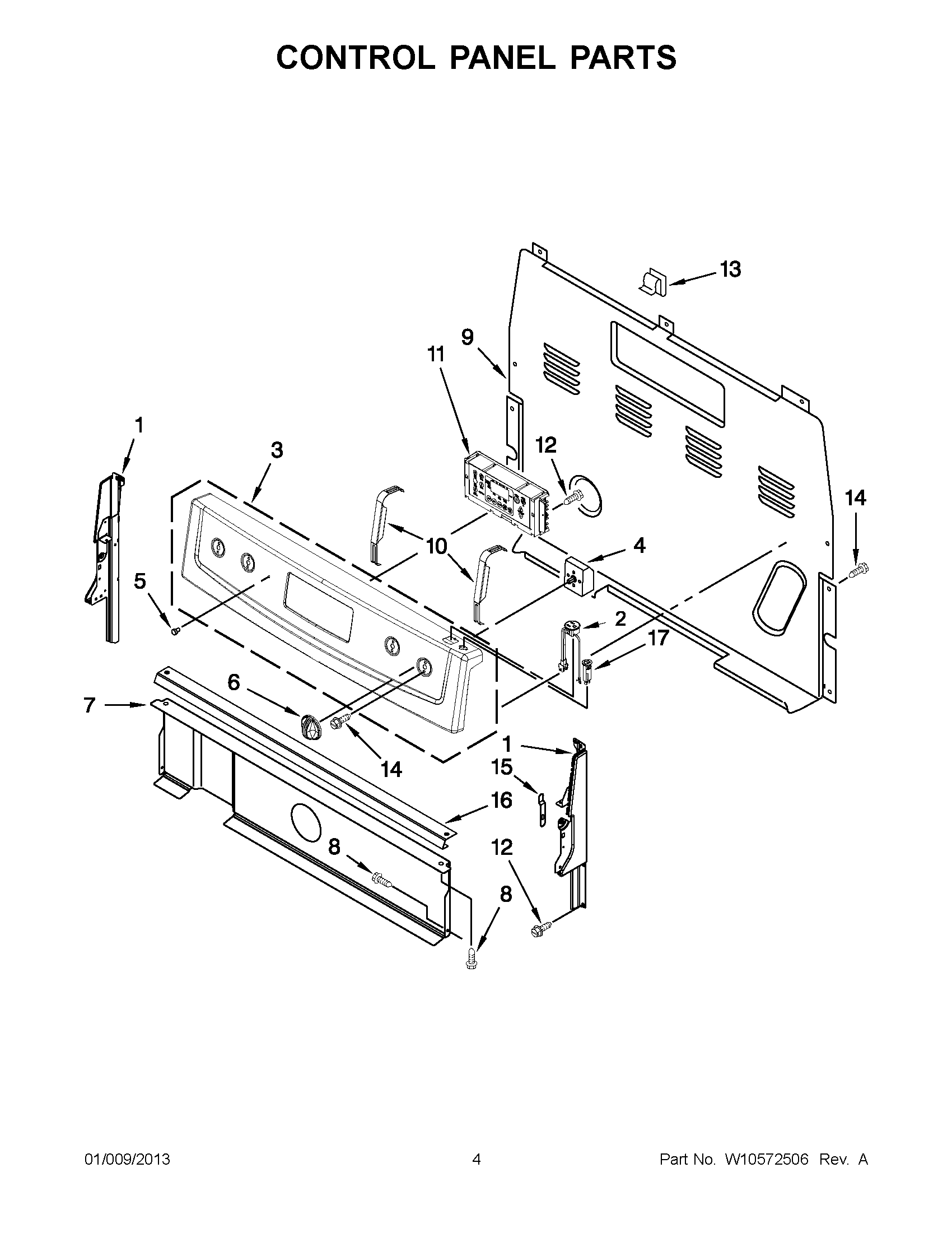

YACR4330BCW0 02 – CONTROL PANEL PARTS

YACR4330BCW0 02 – CONTROL PANEL PARTS

Written by

in

YACR4330BCW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (LEFT))
1ENDCAP (WHITE (RIGHT))
2RECEPTACLE (WHITE)
3MAY W10558050
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5MAY 3196068
6KNOB, INFINITE (WHITE)
7SHIELD, HEAT
8SCREW
9COVER, UPPER REAR
10BRACKET, MOUNTING, EOC
11CONTROL, RANGE (WHITE)
12SCREW
13MAY 8273564
14SCREW
15CLIP, SPRING
16BRACKET, CONSOLE MOUNTING
17BREAKER, CIRCUIT (WHITE)
