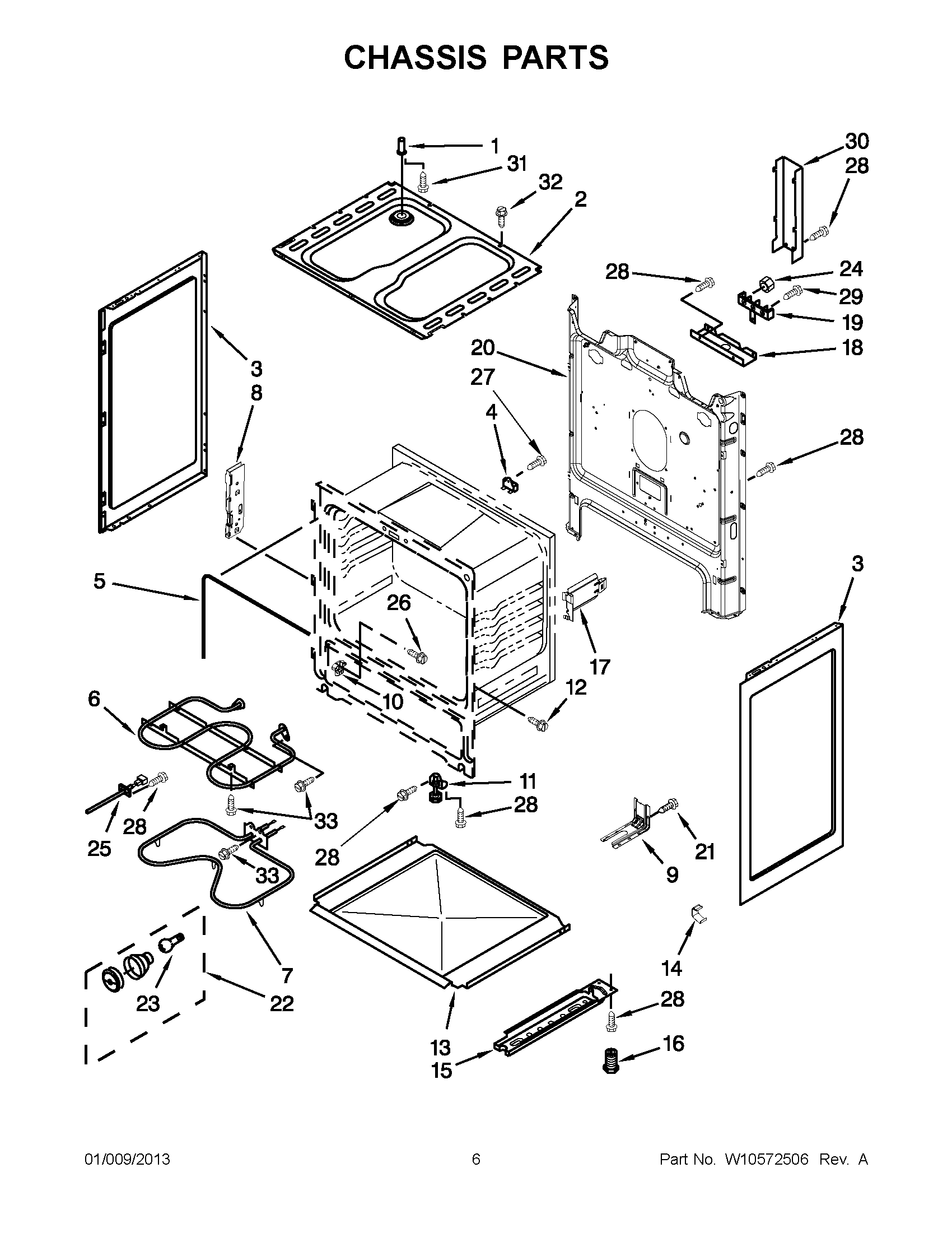

YACR4330BCW0 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	MAY 3169143
2	BOX, BURNER
3	MAY W10322769
4	FUSE, THERMAL
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	RECEIVER, HINGE
9	BRACKET, ANTI-TIP
10	GLIDE, DRAWER
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	CLIP, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	BACK, MAIN
21	SCREW, ANTI-TIP KIT
22	ASSEMBLY, LIGHT
23	BULB, OVEN LIGHT
24	WP7103P027-60 Whirlpool Nut
25	SENSOR, OVEN
26	SCREW
27	SCREW
28	SCREW
29	SCREW
30	COVER, TERMINAL BLOCK
31	SCREW
32	SCREW
33	SCREW
