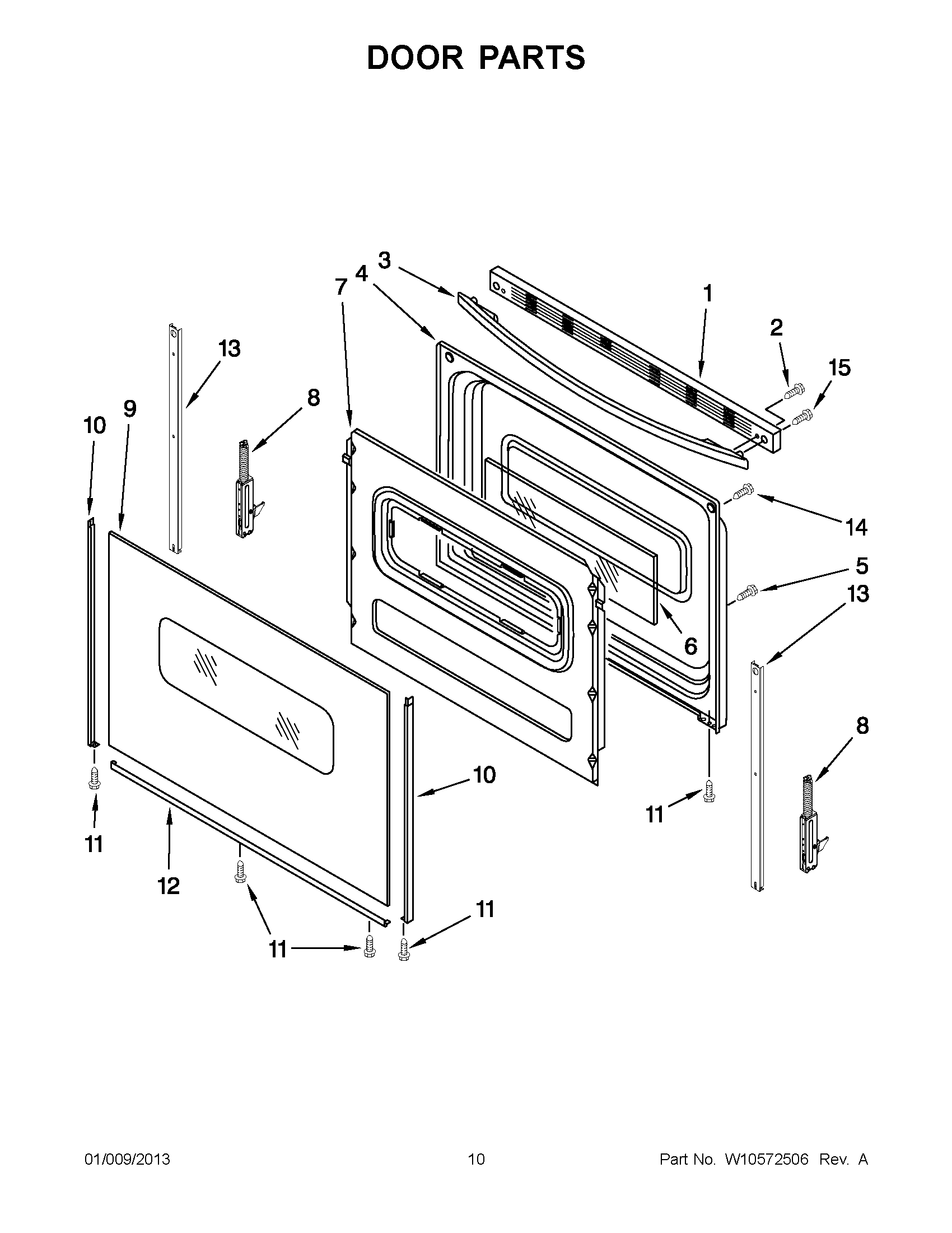

YACR4330BCW0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
2SCREW
3HANDLE, DOOR (WHITE)
4LINER, DOOR
5SCREW
6GLASS, INNER
7RETAINER, INSULATION
8HINGE, DOOR (PASSIVE)
8HINGE, ACTIVE
9Glass, Outer (White)
10TRIM, SIDE (WHITE (LEFT))
10TRIM, SIDE (WHITE (RIGHT))
11SCREW
12TRIM, LOWER (WHITE)
13STRAP, DOOR
14MAY W10031780
15SCREW
