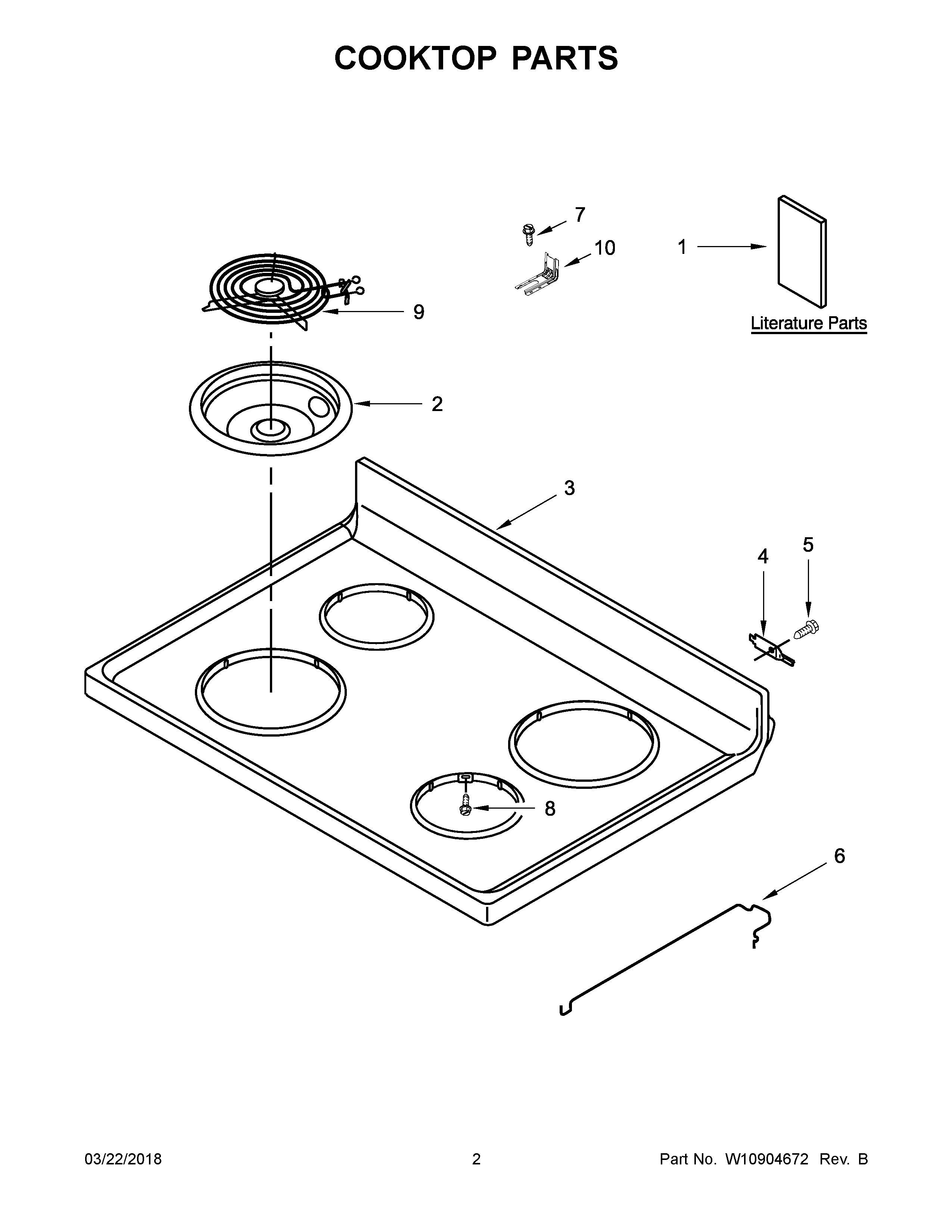

YACR4503SFW0 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, WIRE (MAIN)
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
1CINSTRUCTIONS, INSTALLATION
1USER INSTRUCTIONS
1BDIAGRAM, WIRING
1ASHEET, TECH
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3COOKTOP (BLACK)
3ACOOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
9AELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
10BRACKET, ANTI-TIP
