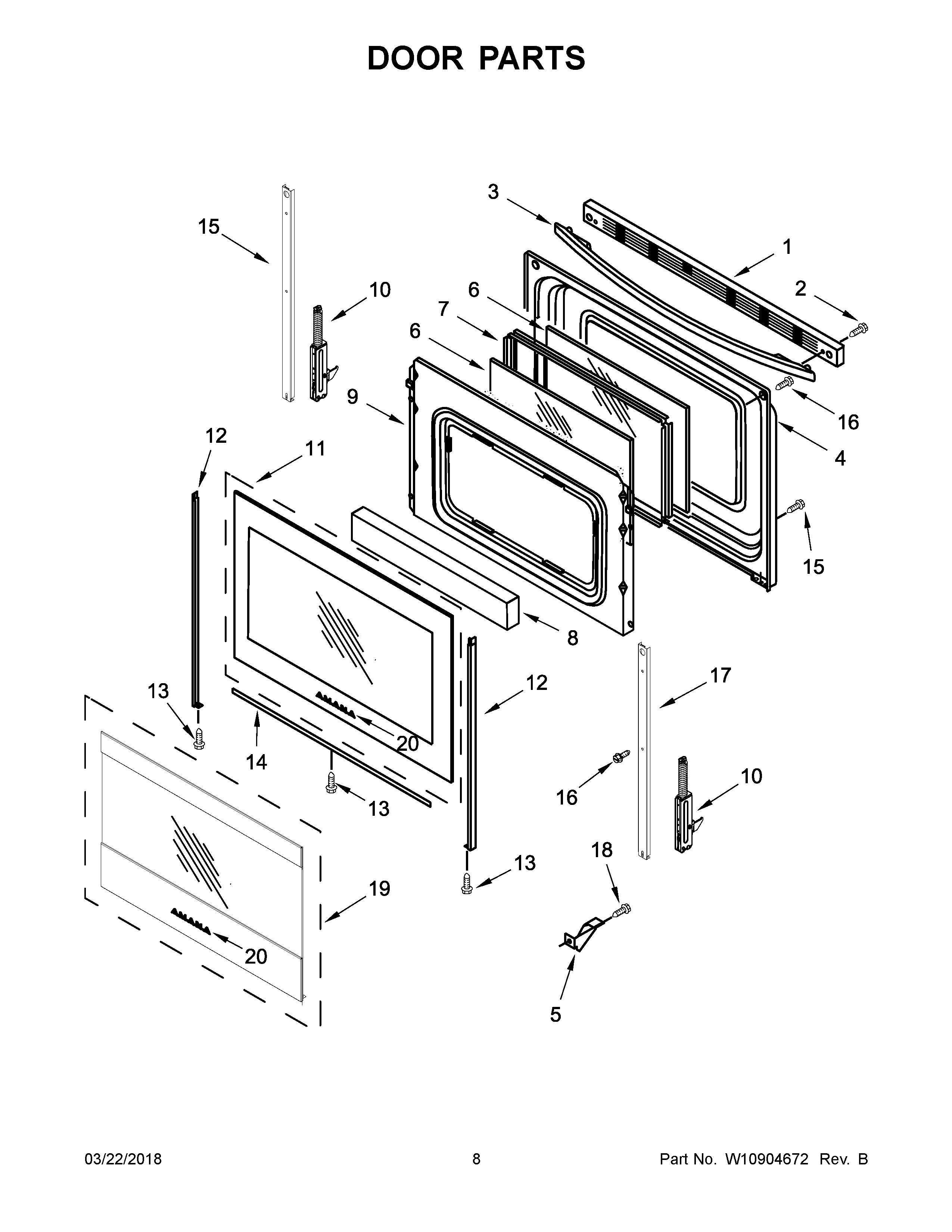

YACR4503SFW0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1ATRIM, TOP (WHITE)
2SCREW
3AHANDLE, DOOR (STAINLESS)
3HANDLE, DOOR (WHITE)
4LINER, DOOR
5CLIP, PANEL
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10AHINGE, DOOR (PASSIVE)
11AGLASS, OUTER (WHITE)
11GLASS, OUTER (BLACK)
12ATRIM, SIDE (BLACK (LEFT))
12TRIM, SIDE (BLACK (RIGHT))
12CTRIM, SIDE (WHITE (LEFT))
12BTRIM, SIDE (WHITE (RIGHT))
13SCREW
14TRIM, LOWER (WHITE)
15SCREW
16SCREW
17STRAP, DOOR
18SCREW
19MAY W11167875
20ABADGE (WHITE)
20BADGE (STAINLESS)
