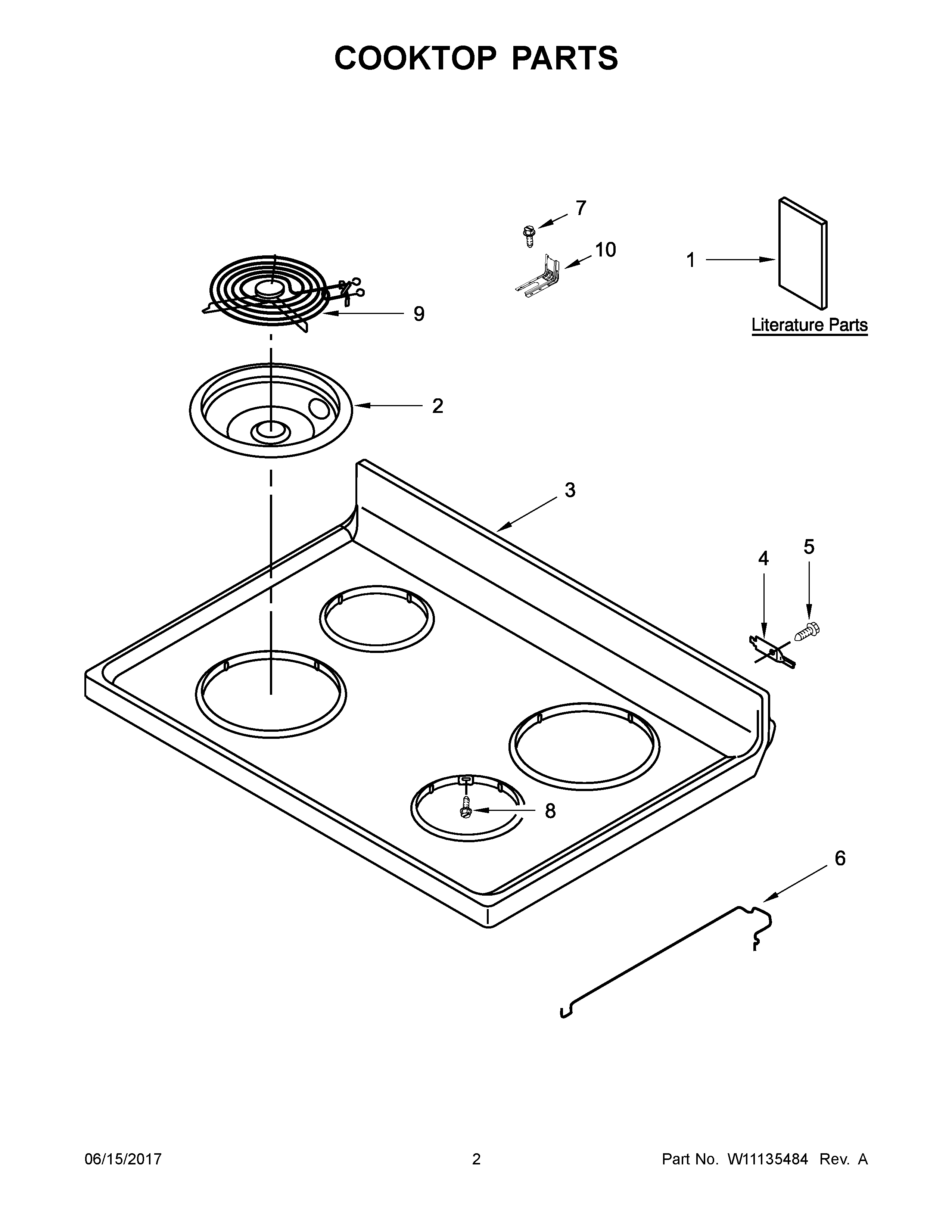

YACR4503SFW1 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, WIRE (MAIN)
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
1ASHEET, TECH
1CINSTRUCTIONS, INSTALLATION
1USER INSTRUCTIONS
1BDIAGRAM, WIRING
1DTIPS, SAFE COOKING (ENGLISH)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3ACOOKTOP (WHITE)
3COOKTOP (BLACK)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9AELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
9ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
10BRACKET, ANTI-TIP
