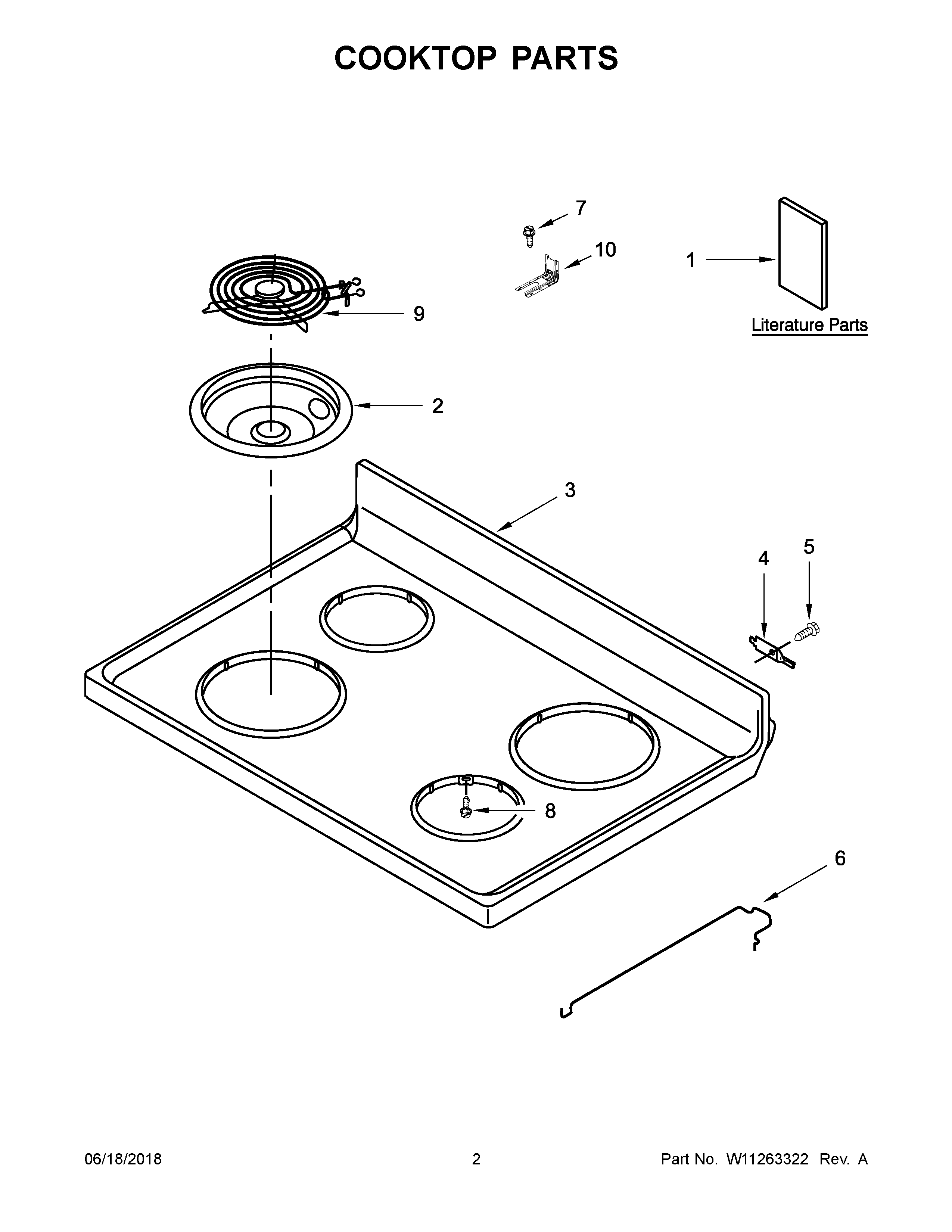

YACR4503SFW2 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, WIRE (MAIN)
NIHARNESS, COOKTOP
NILINER (NOT A SERVICEABLE PART)
1ADIAGRAM, WIRING
1BINSTRUCTIONS, INSTALLATION
1USER INSTRUCTIONS
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW, ANTI-TIP KIT
8SCREW
9ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AND LEFT REAR)
9AELEMENT, COIL HEATING (2150W) (LEFT FRONT AND RIGHT REAR)
10BRACKET, ANTI-TIP
