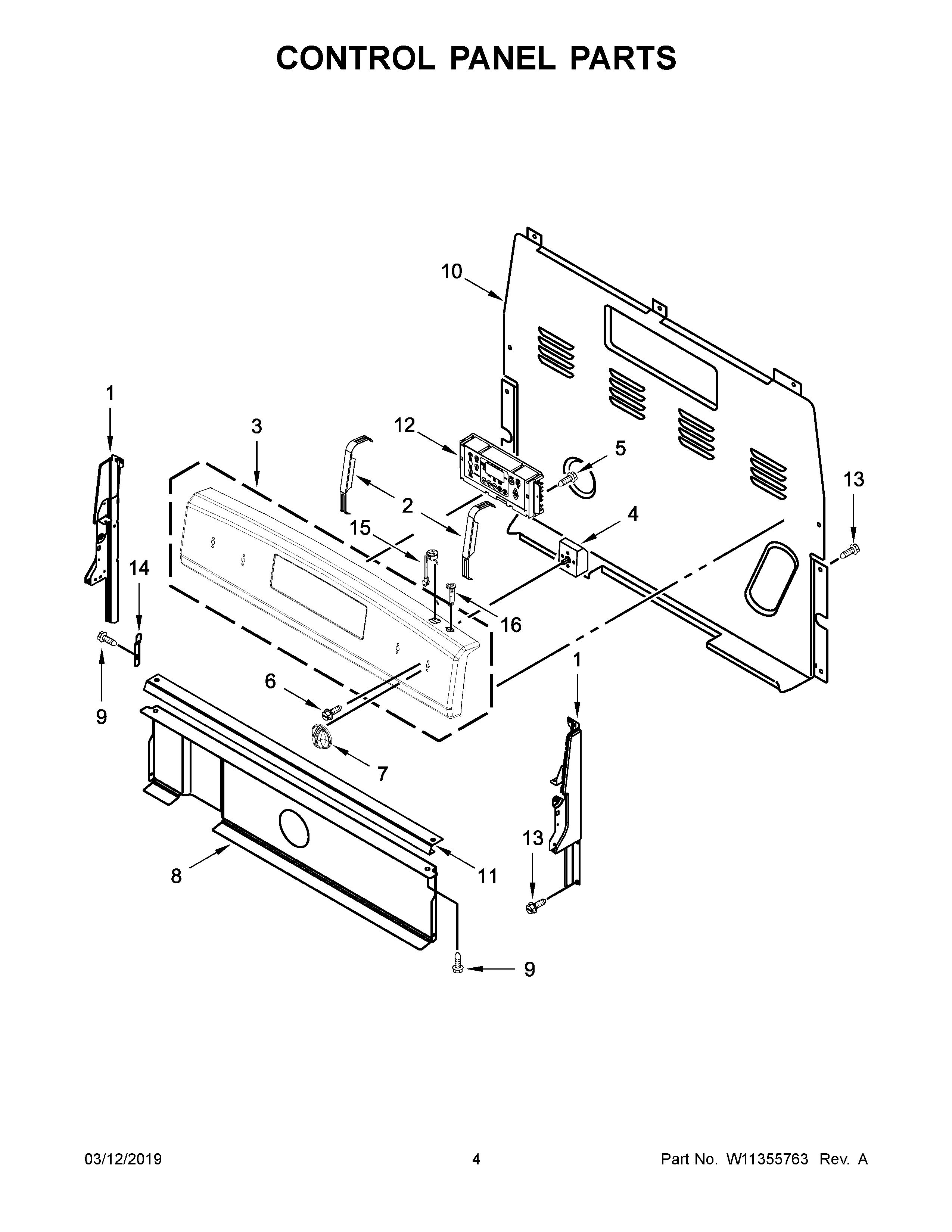

YACR4503SFW3 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDCAP (WHITE (RIGHT))
1	ENDCAP (WHITE (LEFT))
2	BRACKET, CONTROL
3	MAY W11157121
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	SCREW
6	SCREW
7	KNOBS (WHITE)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	BRACKET, CONSOLE MOUNTING
12	CONTROL, ELECTRONIC (WHITE)
13	SCREW
14	CLIP, SPRING
15	RECEPTACLE, FUSED (WHITE)
16	BREAKER, CIRCUIT (WHITE)
