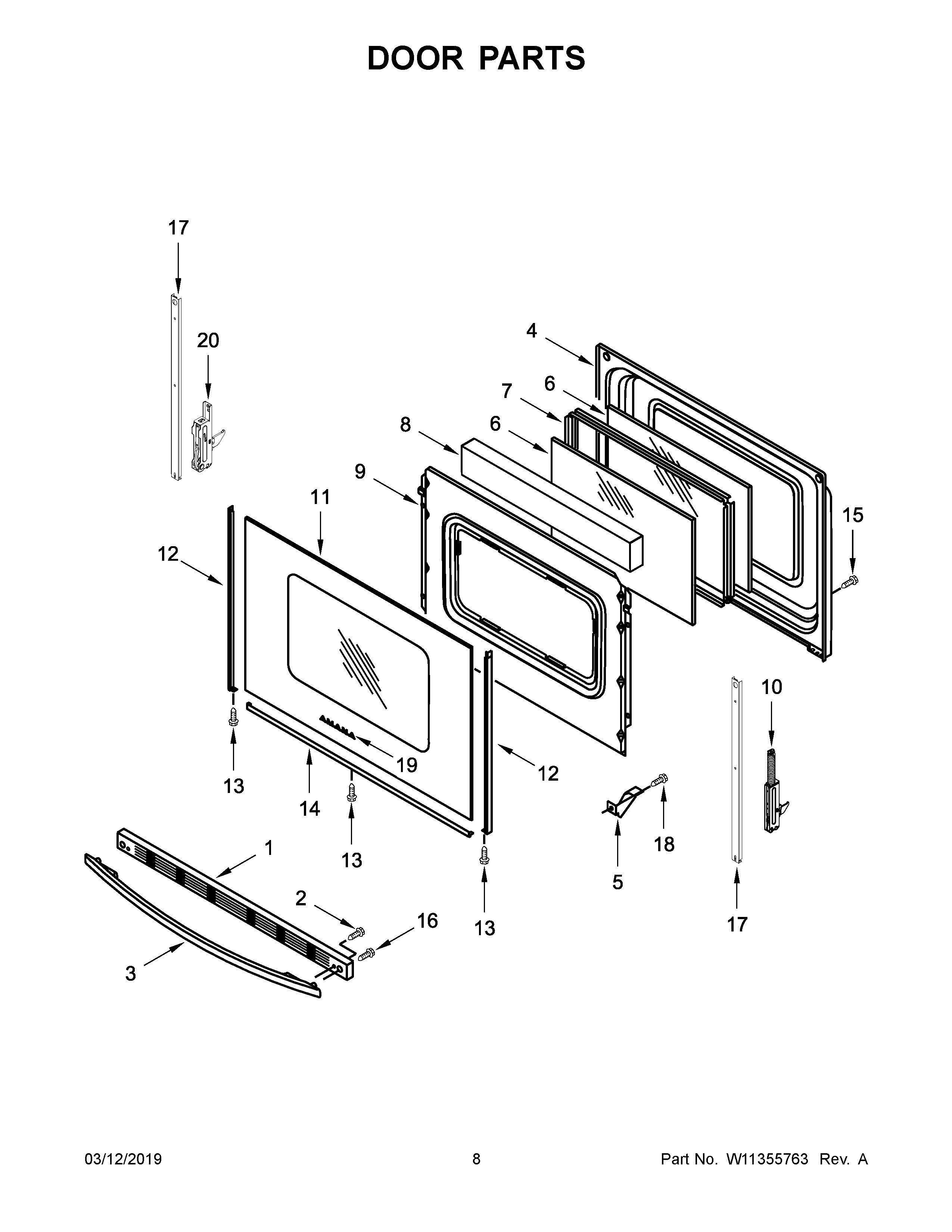

YACR4503SFW3 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	CLIP, PANEL
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE
11	GLASS, OUTER (WHITE)
12A	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14	TRIM, LOWER (WHITE)
15	SCREW
16	SCREW
17	STRAP, DOOR
18	SCREW
19	BADGE (WHITE)
20	HINGE, DOOR (PASSIVE)
