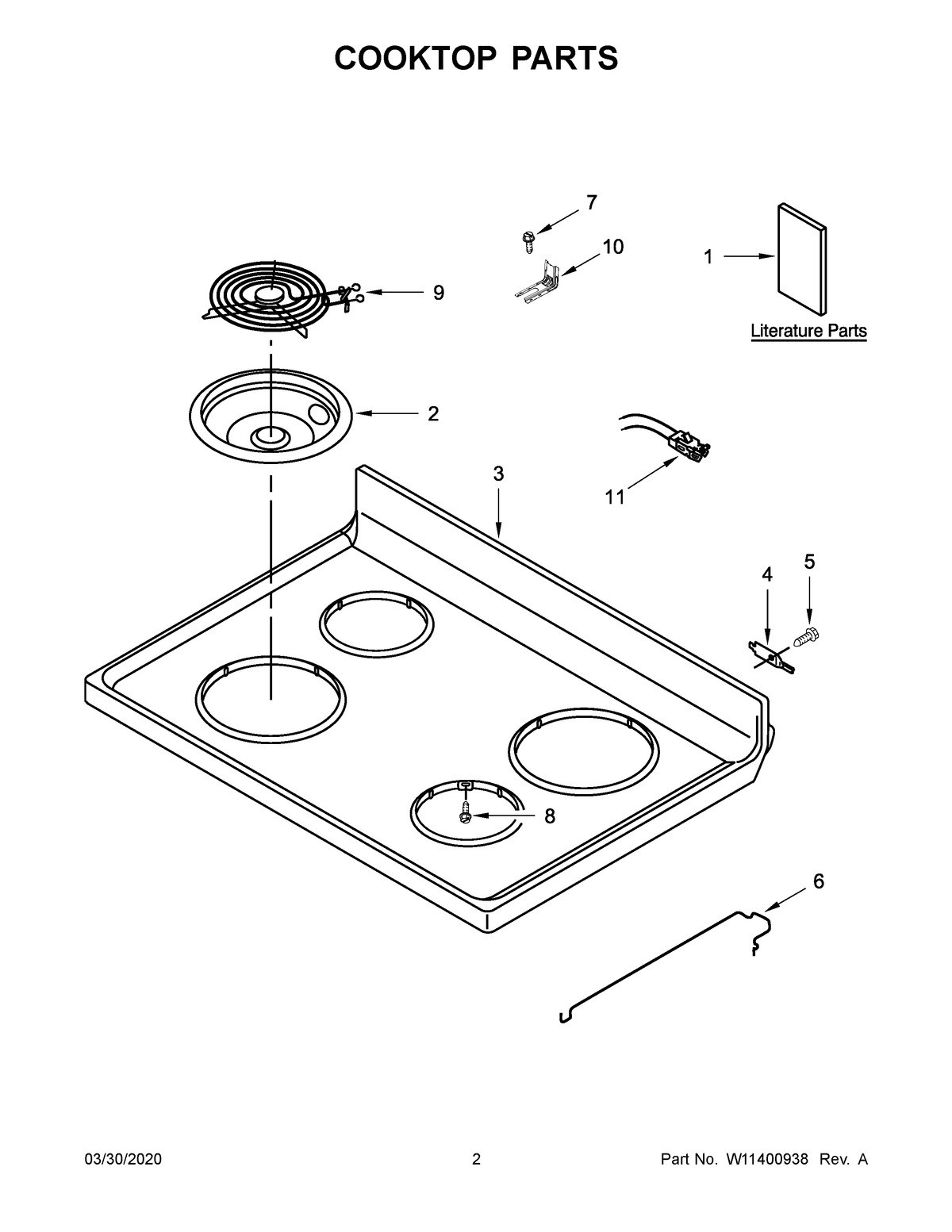

YACR4503SFW5 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	HARNESS, WIRE (MAIN)
NI	HARNESS, COOKTOP
NI	LINER (NOT A SERVICEABLE PART)
1	INSTRUCTIONS, INSTALLATION
1B	MAY W11327943
1A	USER INSTRUCTIONS
2	BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
2A	BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
3	COOKTOP (WHITE)
4	HINGE, COOKTOP
5	SCREW
6	ROD, SUPPORT
7	SCREW, ANTI-TIP KIT
8	SCREW
9	ELEMENT, COIL HEATING (1500W) (RIGHT FRONT AND LEFT REAR)
9A	ELEMENT, COIL HEATING (2400W) (LEFT FRONT AND RIGHT REAR)
10	ANTI-TIP BRACKET
11	RECEPTACLE, ELEMENT
