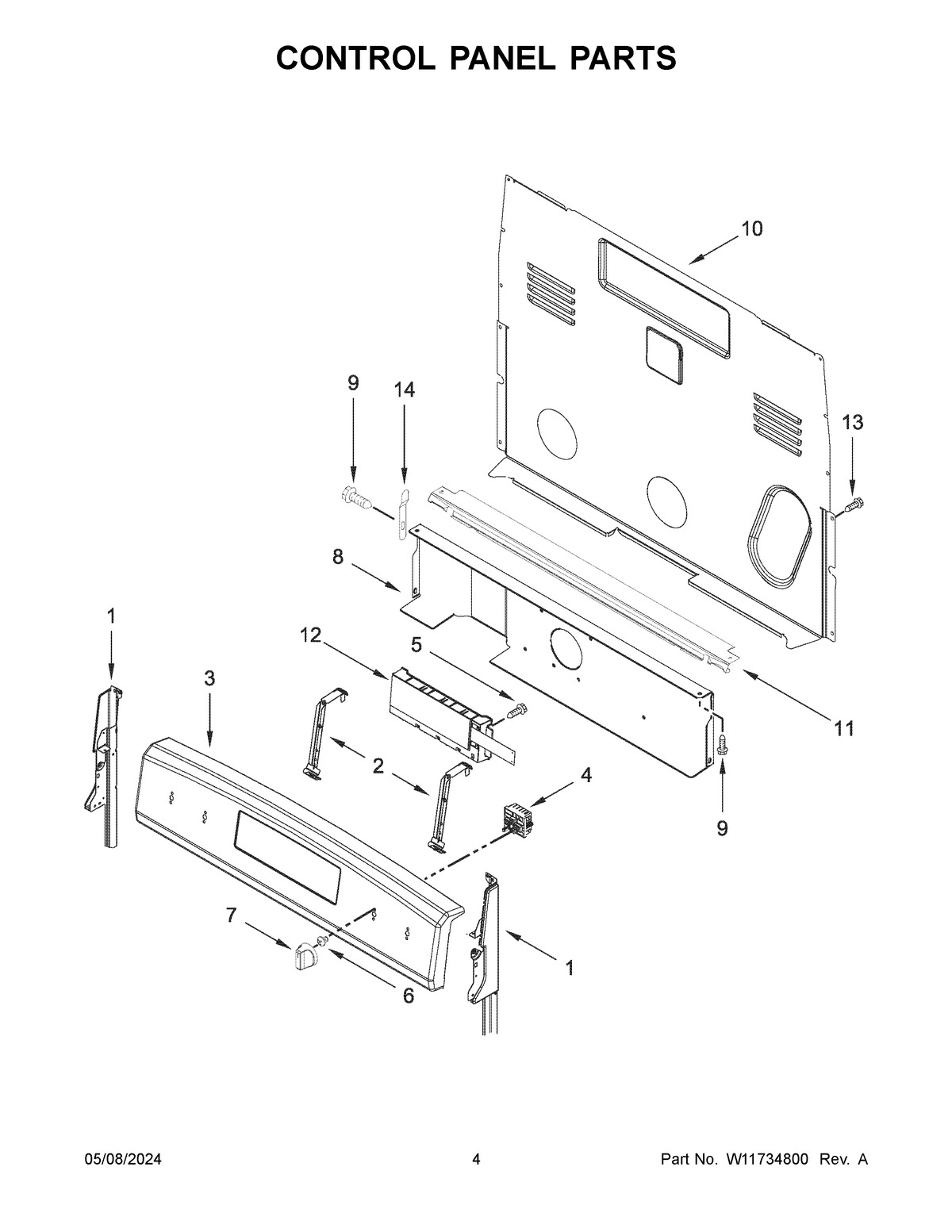

YACR4503SFW9 03 – CONTROL PANEL PARTS

YACR4503SFW9 03 – CONTROL PANEL PARTS

Written by

in

YACR4503SFW9 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3W11231950 Whirlpool Control Panel
4WP3149400 Whirlpool Oven Infinite Switch
4AWP3148952 Whirlpool Oven Infinite Switch
5WP3196557 Whirlpool Screw
6WP3400882 Whirlpool Screw
7W11188750 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11602267 Whirlpool Electronic Control Board + Core
13SCREW
143196200 Whirlpool Clip
