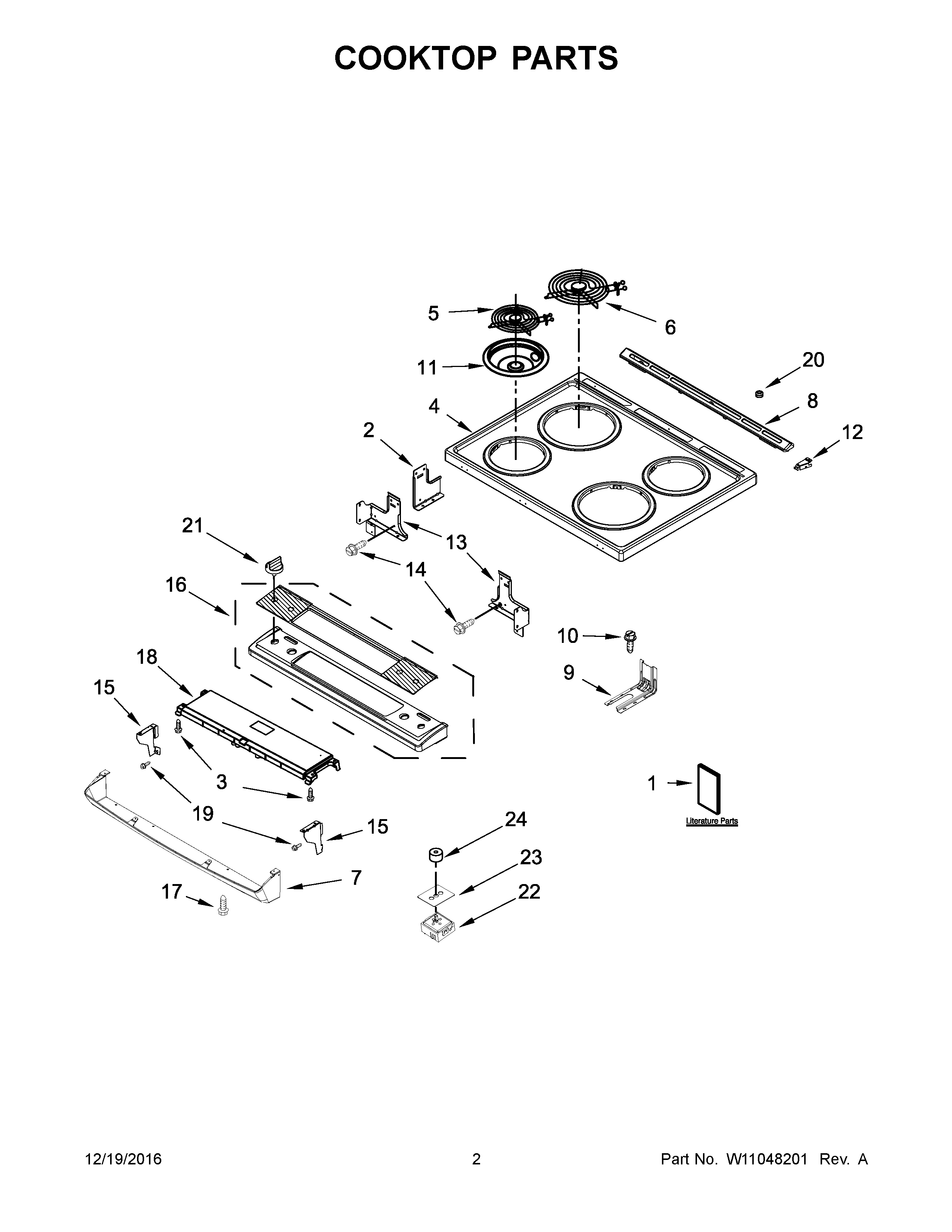

YACS4303MFS0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10876368
NIMAY W10800451
NILINER (NOT A SERVICEABLE PART)
NIMAY W10664316
NIMAY 7111P017-60
1CTIPS, SAFE COOKING (ENGLISH)
1MAY W10842014
1EMAY W10850073
1AMAY W10887090
1DTIPS, SAFE COOKING (FRENCH)
1BSHEET, TECH
2MAY W10814305
3SCREW
4AMAY W10536268
4MAY W10536327
5ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
6ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
7AMAY W10816942
7MAY W10816943
8MAY W10636528
8AMAY W10636527
9BRACKET, ANTI-TIP
10SCREW, ANTI-TIP KIT
11ABOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
11BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
12BRACE, CORNER (LEFT)
12ABRACE, CORNER (RIGHT)
13AMAY W10814303
13MAY W10814304
14SCREW
15ABRACKET, CONSOLE (RIGHT)
15BRACKET, CONSOLE (LEFT)
16AMAY W10825321
16MAY W10825291
17MAY W10516115
18MAY W10806855
18AMAY W10806848
19SCREW
20MAY W10854253
21AMAY W10844799
21MAY W10844797
22SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
22ASWITCH, INFINITE (RIGHT FRONT AND LEFT REAR)
23GASKET, INFINITE SWITCH
24MAY W10702912
