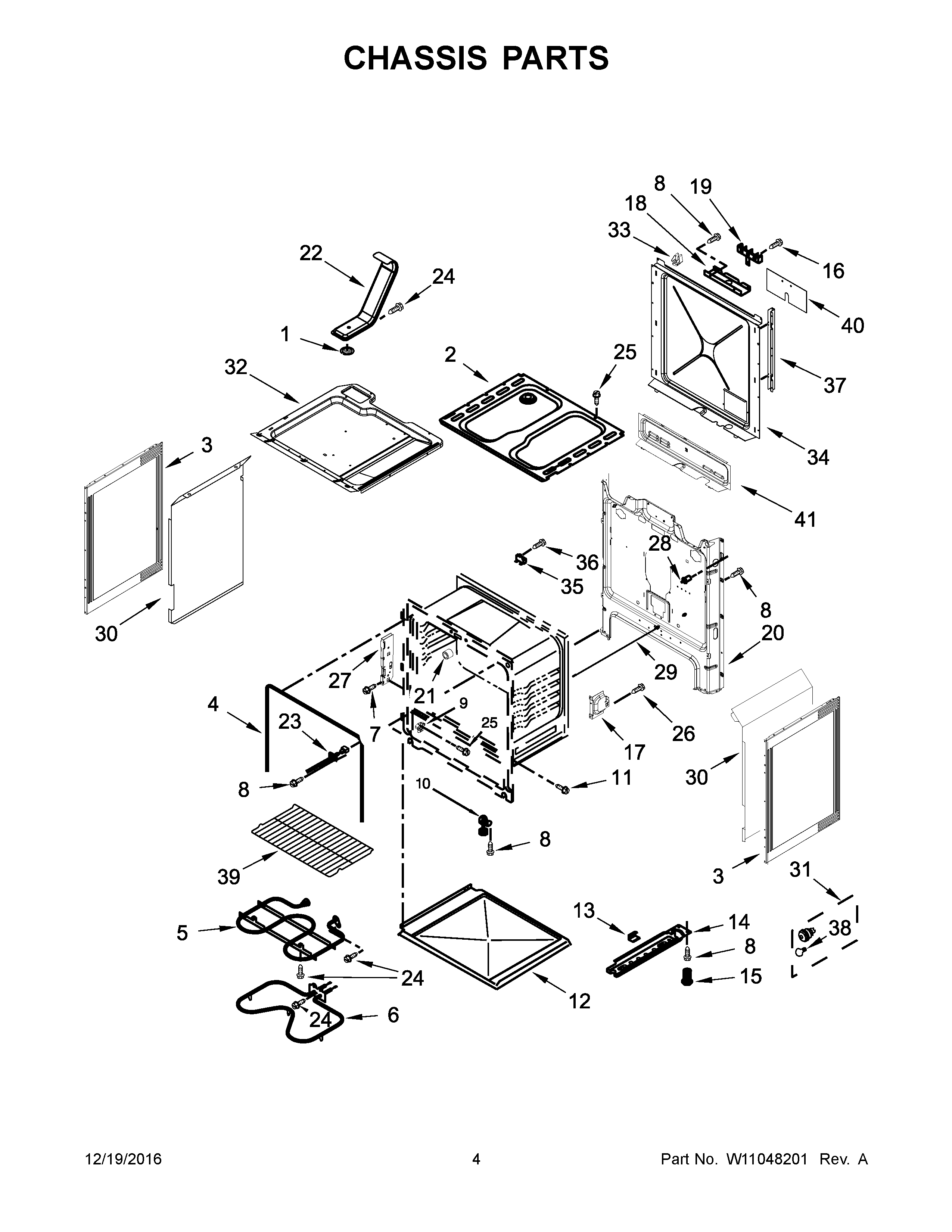

YACS4303MFS0 03 – CHASSIS PARTS

YACS4303MFS0 03 – CHASSIS PARTS

Written by

in

YACS4303MFS0 03 – CHASSIS PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10830993
NI	MAY W10815385
1	MAY 9761301
2	MAY W10536273
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	SEAL, DOOR
5	MAY W10583047
6	MAY W10535148
7	MAY W10031780
8	SCREW
9	GLIDE, DRAWER FRONT
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	MAY W10312471
13	CLIP, PANEL
14	ASSEMBLY, BASE RAIL (RIGHT)
14A	ASSEMBLY, BASE RAIL (LEFT)
15	FOOT, LEVELING
16	SCREW
17	BRACKET, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	BACK, MAIN
21	SPACER, DOOR
22	MAY W10824557
23	MAY W10586204
24	MAY W10362924
25	MAY 3400080
26	SCREW
27	RECEIVER, HINGE
28	SWITCH, DOOR
29	ROD, DOOR SWITCH
30A	MAY 9761449
30	MAY 9761448
31	ASSEMBLY, LIGHT
32	MAY W10814301
33	MAY W10866583
34	MAY W10289172
35	FUSE, THERMAL
36	SCREW
37	MAY W10162241
38	BULB, OVEN LIGHT
39	RACK, OVEN
40	MAY W10655441
41	MAY W10162248
