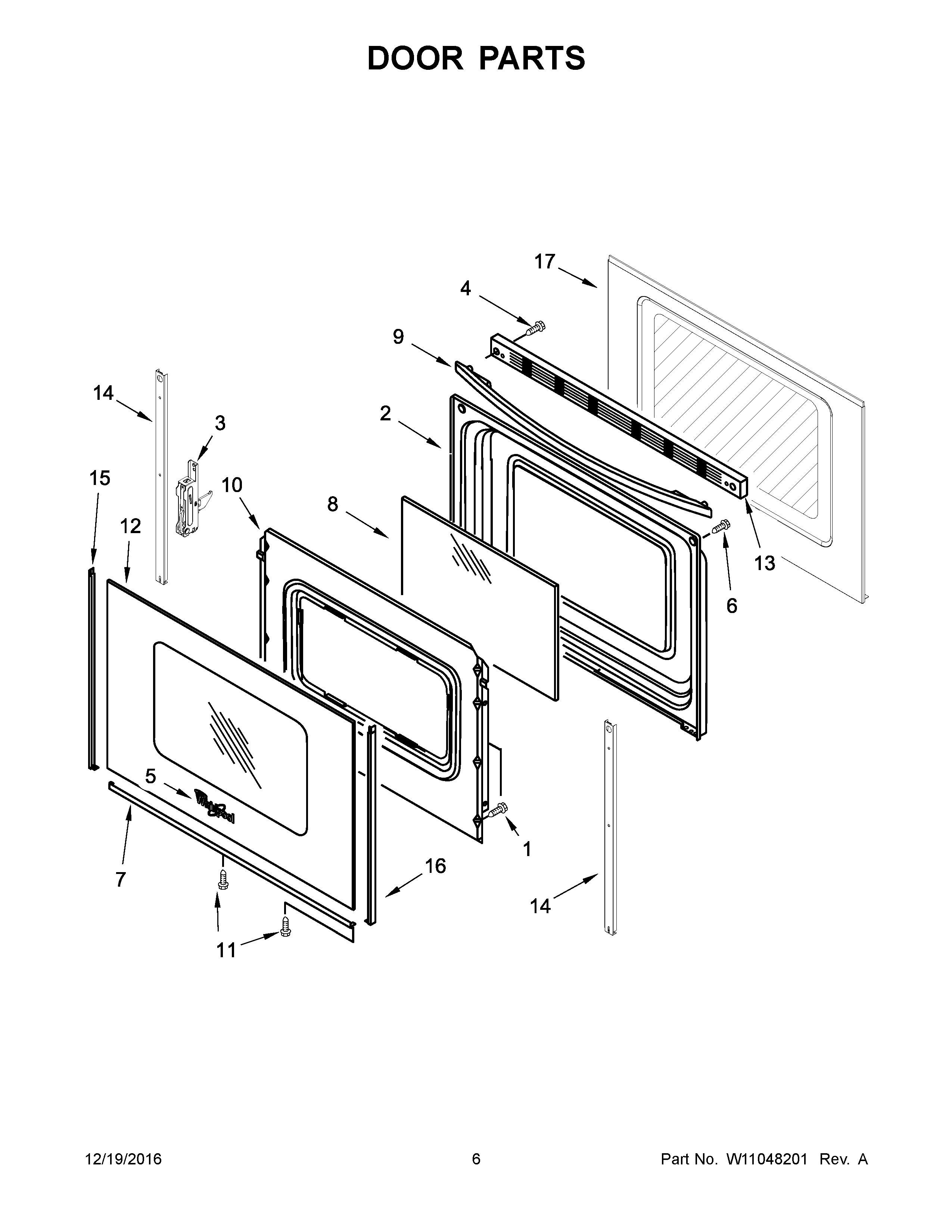

YACS4303MFS0 04 – DOOR PARTSadmin2025-04-26T08:49:02+00:00YACS4303MFS0 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | LINER, DOOR |
| 3 | MAY W10440013 |
| 4 | SCREW |
| 5A | BADGE (STAINLESS) |
| 5 | BADGE (WHITE) |
| 6 | SCREW |
| 7 | TRIM, LOWER (WHITE) |
| 8 | GLASS, INNER |
| 9A | HANDLE, DOOR (STAINLESS) |
| 9 | HANDLE, DOOR (WHITE) |
| 10 | RETAINER, INSULATION |
| 11 | MAY W10362924 |
| 12A | GLASS, OUTER (WHITE) |
| 12 | GLASS, OUTER (BLACK) |
| 13A | TRIM, TOP (WHITE) |
| 13 | TRIM, TOP (BLACK) |
| 14 | STRAP, DOOR |
| 15 | TRIM, SIDE (WHITE (LEFT)) |
| 16 | TRIM, SIDE (WHITE (RIGHT)) |
| 17 | GLASS ASSEMBLY, OUTER DOOR (STAINLESS) |
