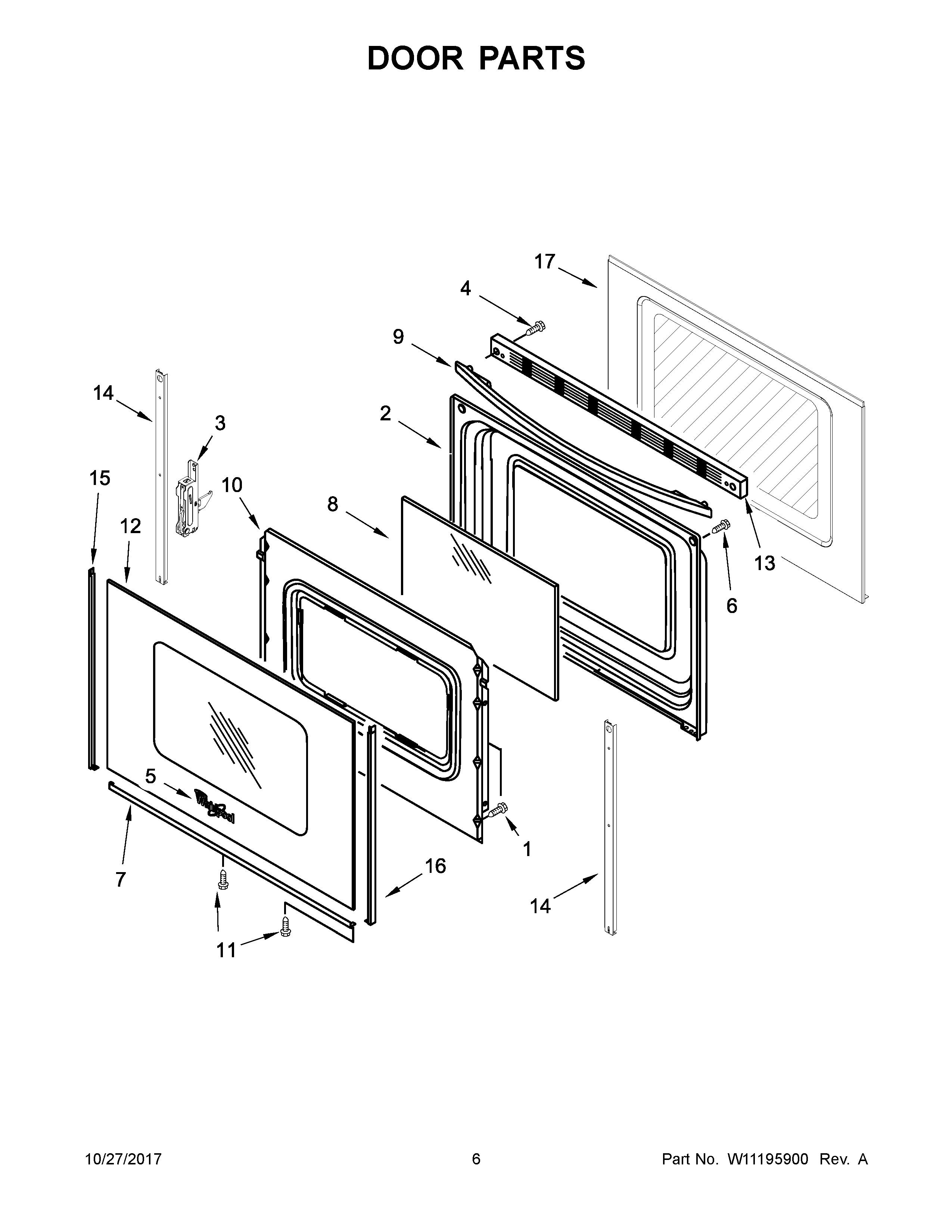

YACS4303MFS1 04 – DOOR PARTS

YACS4303MFS1 04 – DOOR PARTS

Written by

in

YACS4303MFS1 04 – DOOR PARTS

Products

PositionProduct
1SCREW
2LINER, DOOR
3MAY W10440013
4SCREW
5ABADGE (STAINLESS)
5BADGE (WHITE)
6SCREW
7TRIM, LOWER (WHITE)
8GLASS, INNER
9AHANDLE, DOOR (STAINLESS)
9HANDLE, DOOR (WHITE)
10RETAINER, INSULATION
11MAY W10362924
12GLASS, OUTER (WHITE)
12AGLASS, OUTER (BLACK)
13ATRIM, TOP (BLACK)
13TRIM, TOP (WHITE)
14STRAP, DOOR
15TRIM, SIDE (WHITE (LEFT))
15ATRIM, SIDE (BLACK (LEFT))
16ATRIM, SIDE (BLACK (RIGHT))
16TRIM, SIDE (WHITE (RIGHT))
17GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
