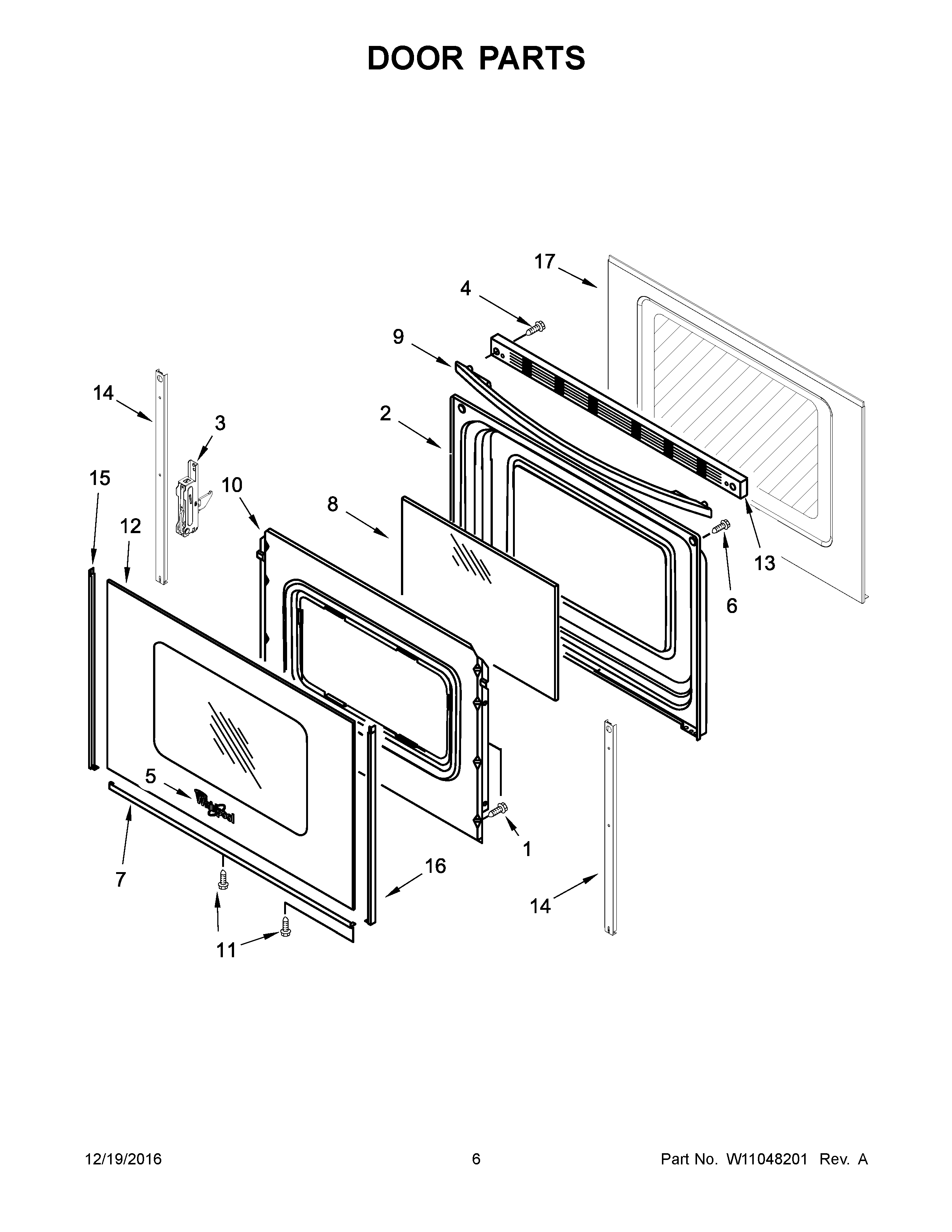

YACS4303MFW0 04 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	MAY W10440013
4	SCREW
5A	BADGE (STAINLESS)
5	BADGE (WHITE)
6	SCREW
7	TRIM, LOWER (WHITE)
8	GLASS, INNER
9A	HANDLE, DOOR (STAINLESS)
9	HANDLE, DOOR (WHITE)
10	RETAINER, INSULATION
11	MAY W10362924
12A	GLASS, OUTER (WHITE)
12	GLASS, OUTER (BLACK)
13A	TRIM, TOP (WHITE)
13	TRIM, TOP (BLACK)
14	STRAP, DOOR
15	TRIM, SIDE (WHITE (LEFT))
16	TRIM, SIDE (WHITE (RIGHT))
17	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
