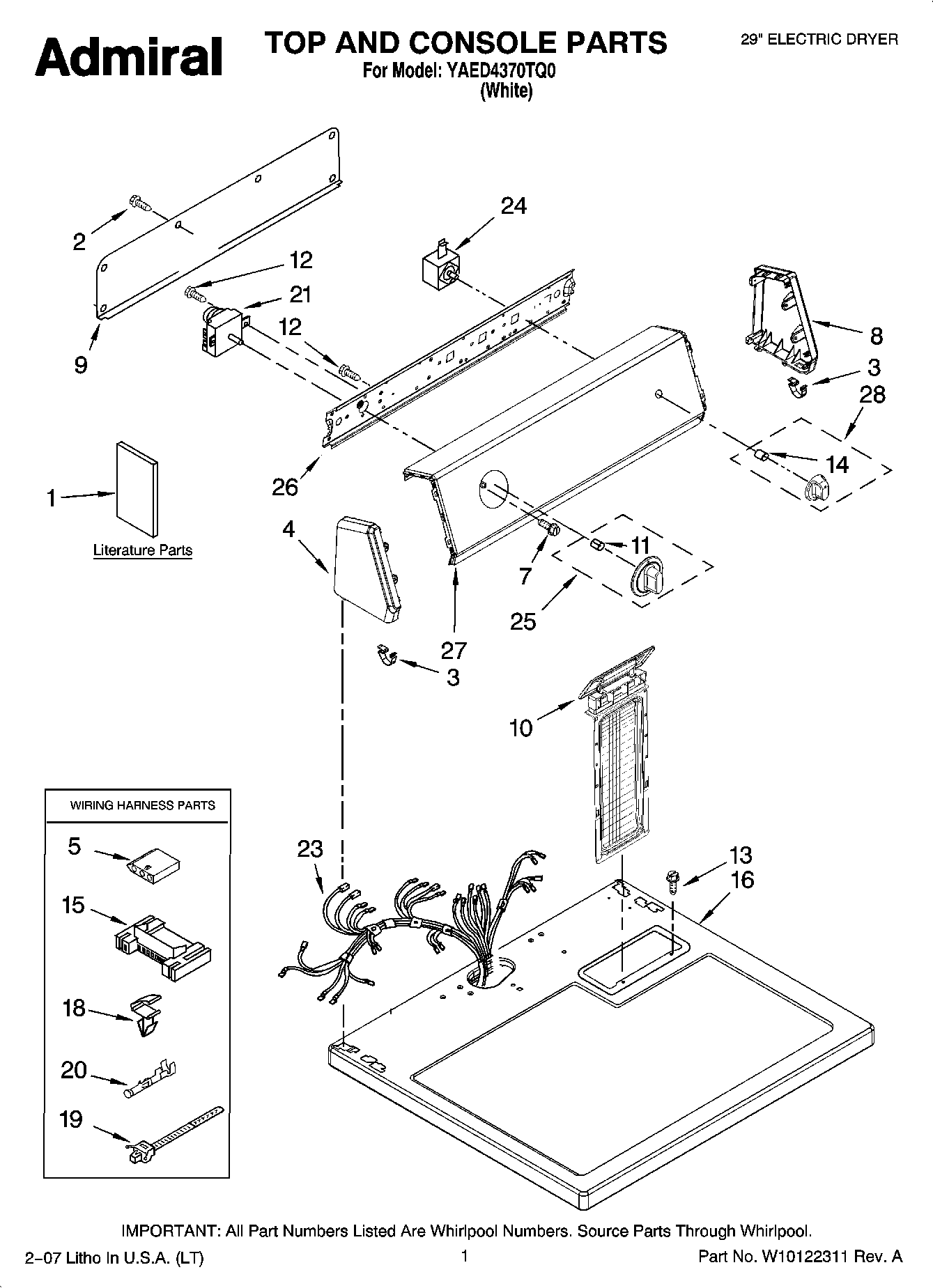

YAED4370TQ0 01 – TOP AND CONSOLE PARTS

YAED4370TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

YAED4370TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10089174
1MAY W10088970
1Use & Care Guide
1MAY 8528188
2Screw
3MAY 8312709
4Cap, End (L.H.) (White)
5MAY 3936144
7MAY 8533951
8Cap, End (R.H.) (White)
9MAY 8274261
10MAY 8558467
12MAY 8533971
13SCREW
14CLIP, SPRING
15CONNECTOR (MOTOR)
16MAY 8559800
18CLIP, HARNESS
19Tie, Cable
20Terminal
21MAY 8299781
23MAY 8299870
24MAY 3977456
25Timer Knob Assembly (White)
26MAY 8579678
27MAY W10086723
28MAY W10110065
