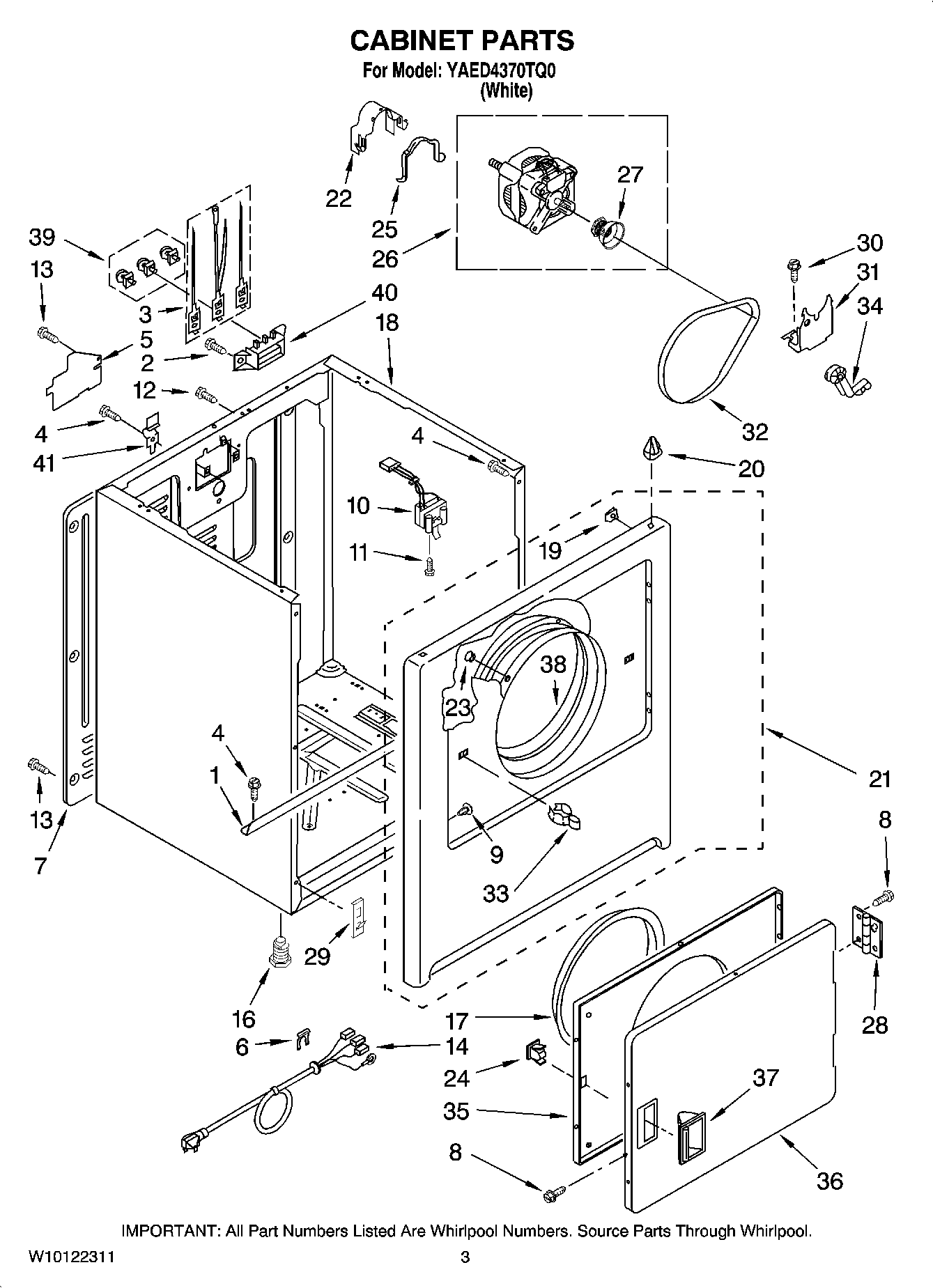

YAED4370TQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8541400
2	SCREW, 10-16 X 1/2
3	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
4	SCREW
5	Cover, Terminal Block
6	Power Cord
7	MAY 3396807
8	MAY 342055
9	PLUG, HINGE HOLES
10	MAY 3406105
11	SCREW
12	Screw, 8-18 x 5/8 (External Ground)
13	Screw
14	STRAIN-RELIEF CLIP
16	MAY 3392100
17	MAY 3405245
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403571
22	Clamp, Motor (With Shield)
23	Clip, Felt Pad
24	Catch, Door
25	MAY 660658
26	MAY 8066206
27	Pulley, Motor
28	HINGE AND PIN ASSEMBLY
29	MAY 3394083
30	BOLT
31	MAY 348780
32	MAY 8066065
33	MAY 696144
34	IDLER ASSEMBLY
35	MAY 3403371
36	MAY 3403361
37	Handle, Door (White)
38	MAY 8066124
39	MAY 279393
40	MAY 3397659
41	Hinge, Top
