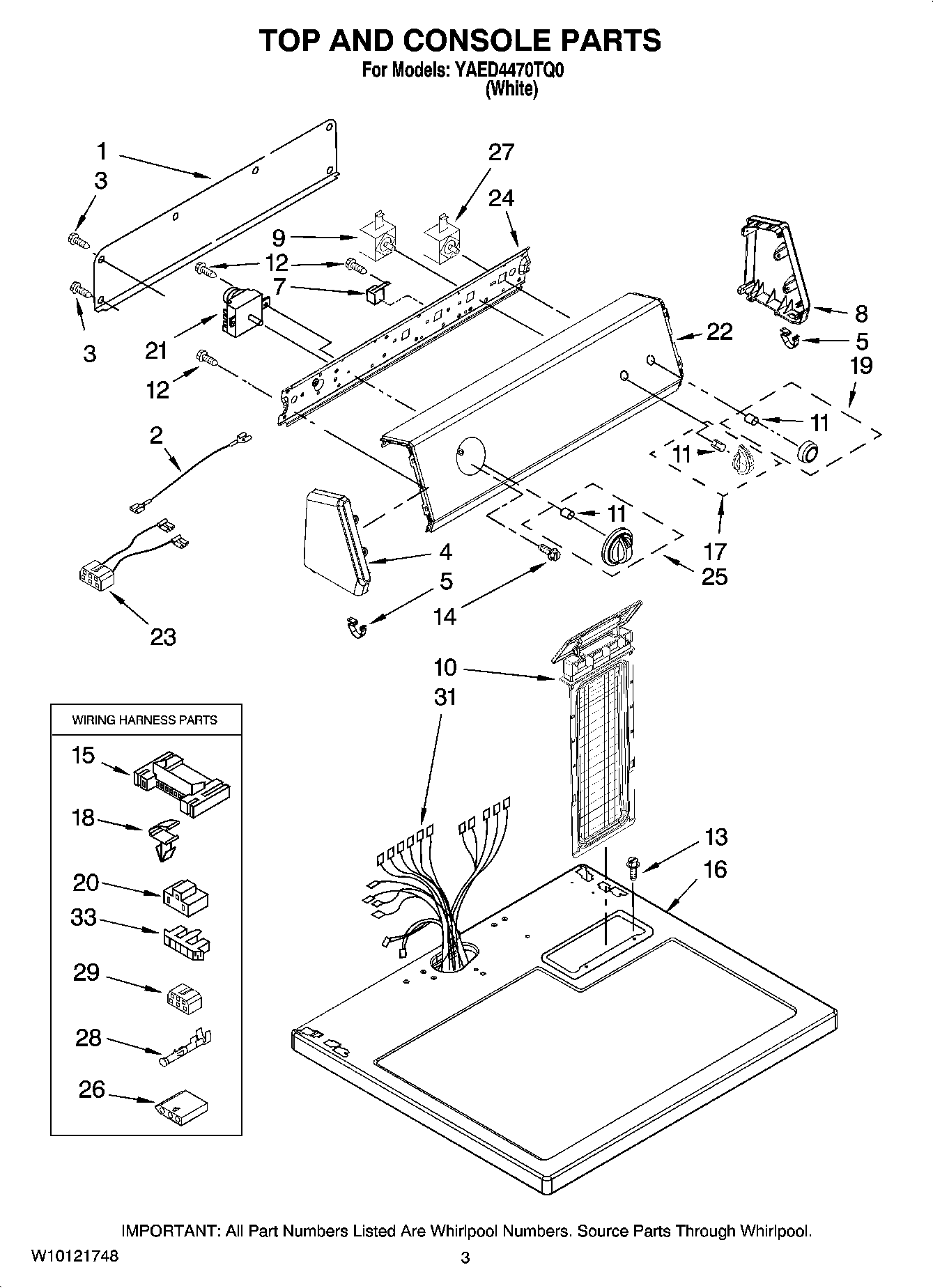

YAED4470TQ0 02 – TOP AND CONSOLE PARTS

YAED4470TQ0 02 – TOP AND CONSOLE PARTS

Written by

in

YAED4470TQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY 8274261
2Wire, Jumper (Black)
3Screw
4Cap, End (L.H.) (White)
5MAY 8312709
7MAY 694419
8Cap, End (R.H.) (White)
9Switch, Temperature
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8559800
17Knob, Control (1) (White)
18CLIP, HARNESS
19Knob, Push-To-Start (White)
20Connector (PTS) Relay
21MAY 3979617
22MAY W10086678
23Wire, Jumper (Temperature)
24MAY 8579678
25Timer Knob Assembly (White)
26MAY 3936144
27MAY 3398095
28Terminal
29Connector
31MAY 8299874
33Connector-Timer
