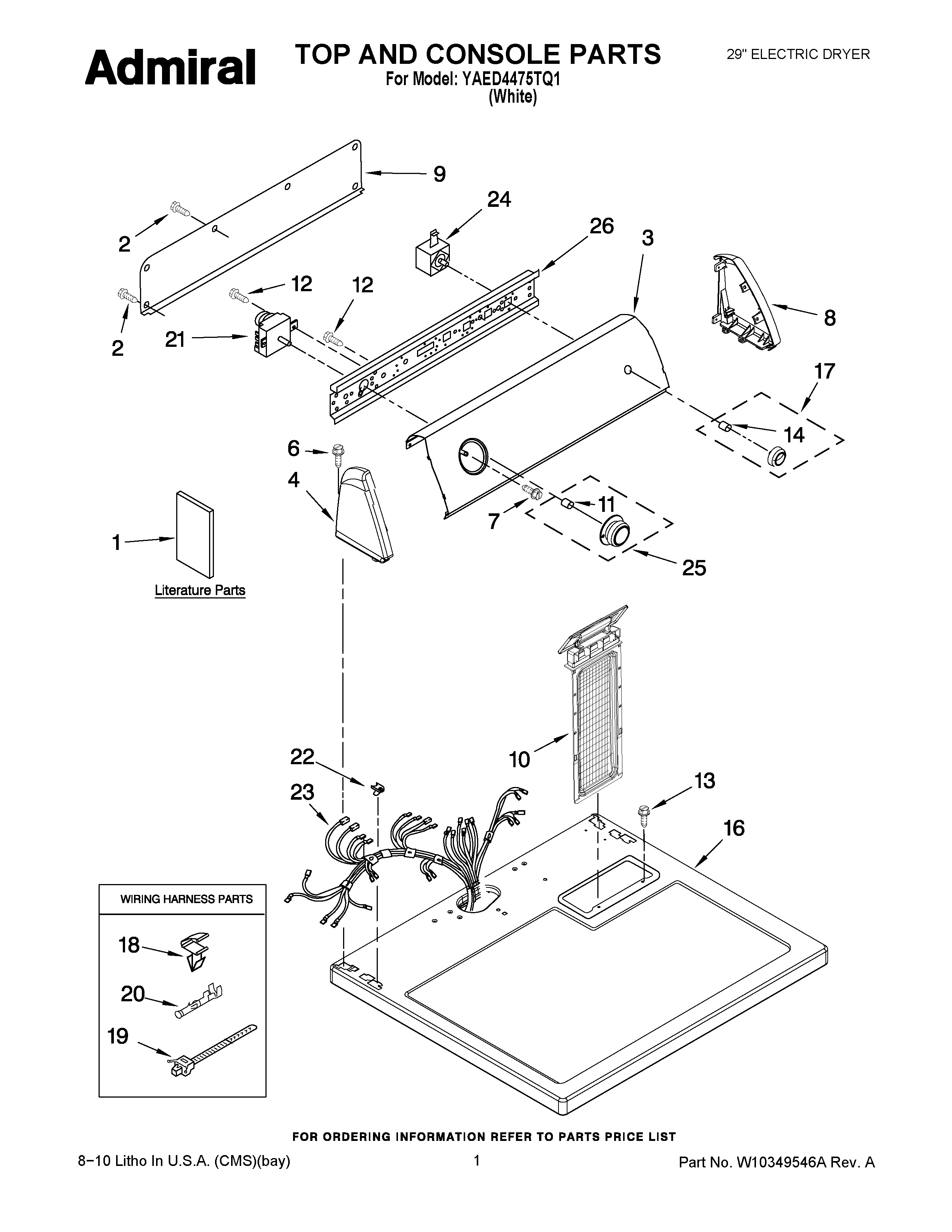

YAED4475TQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	MAY W10185977
1	MAY W10287575
2	Screw
3	MAY W10141666
4	MAY 8271365
6	Screw, Console
7	MAY 8533951
8	MAY 8271359
9	MAY 8274261
10	LINT SCREEN WHITE
11	Spring, Clip Knob
12	MAY 8533971
13	SCREW
14	CLIP, SPRING
16	MAY 8557930
17	MAY 8538959
18	CLIP, HARNESS
19	Tie, Cable
20	Terminal
21	Timer, 60 Hz.
22	Nut, Push-In
23	MAY W10186165
24	MAY 3977456
25	MAY 8538953
26	MAY 8271418
