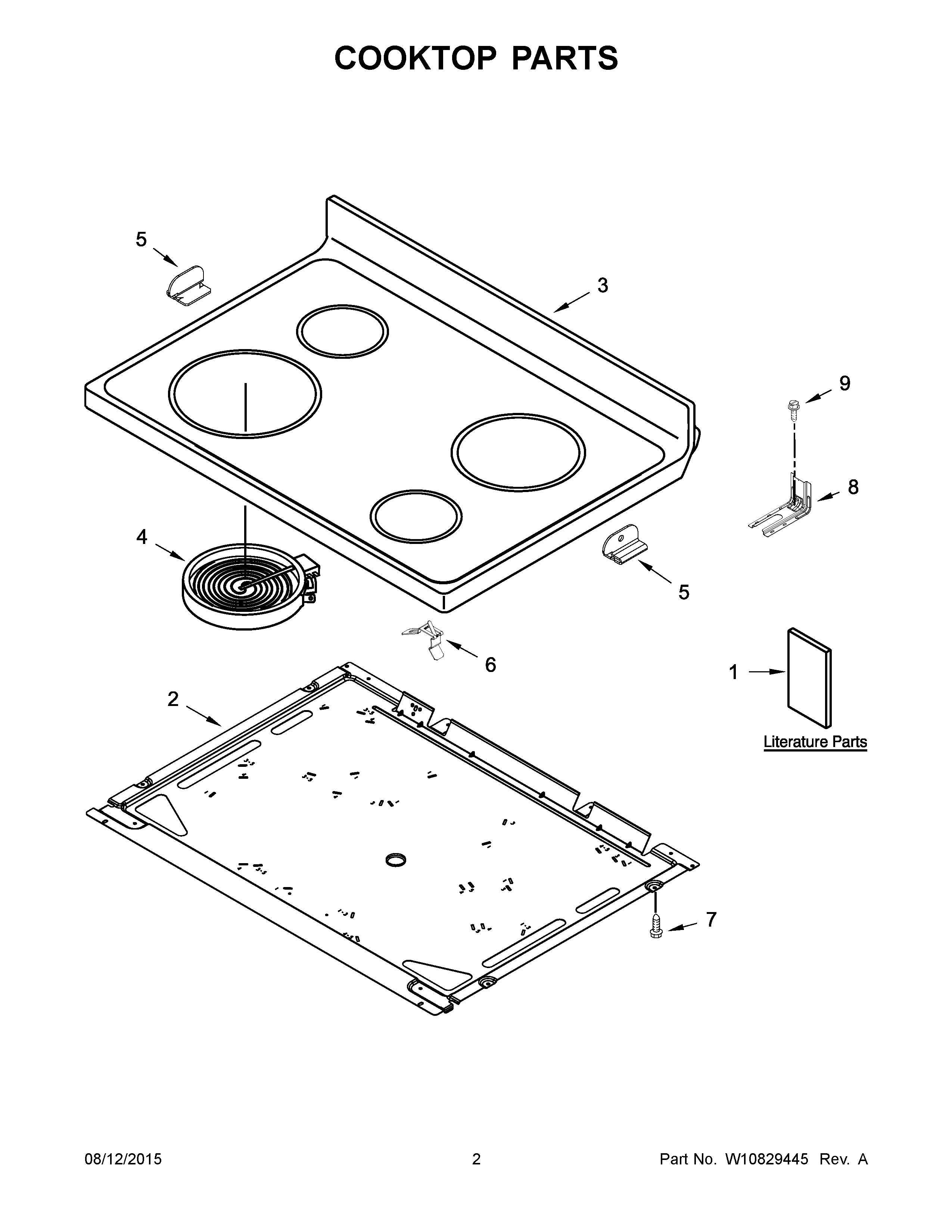

YAER5630BES0 02 – COOKTOP PARTS

YAER5630BES0 02 – COOKTOP PARTS

Written by

in

YAER5630BES0 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (COOKTOP RIGHT)
NIMAY W10084660
NIMAY W10789991
NIMAY W10744211
1BMAY W10403812
1CTIPS, SAFE COOKING (ENGLISH)
1DTIPS, SAFE COOKING (FRENCH)
1AMAY W10789119
1MAY W10789116
2PAN, RADIANT ELEMENT
3MAY W10572575
4BELEMENT (3000/1400W) (LEFT FRONT)
4ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
4AELEMENT (1800W) (RIGHT REAR)
5BRACKET, COOKTOP (LEFT)
5ABRACKET, COOKTOP (RIGHT)
6SPRING, ELEMENT
7SCREW
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
