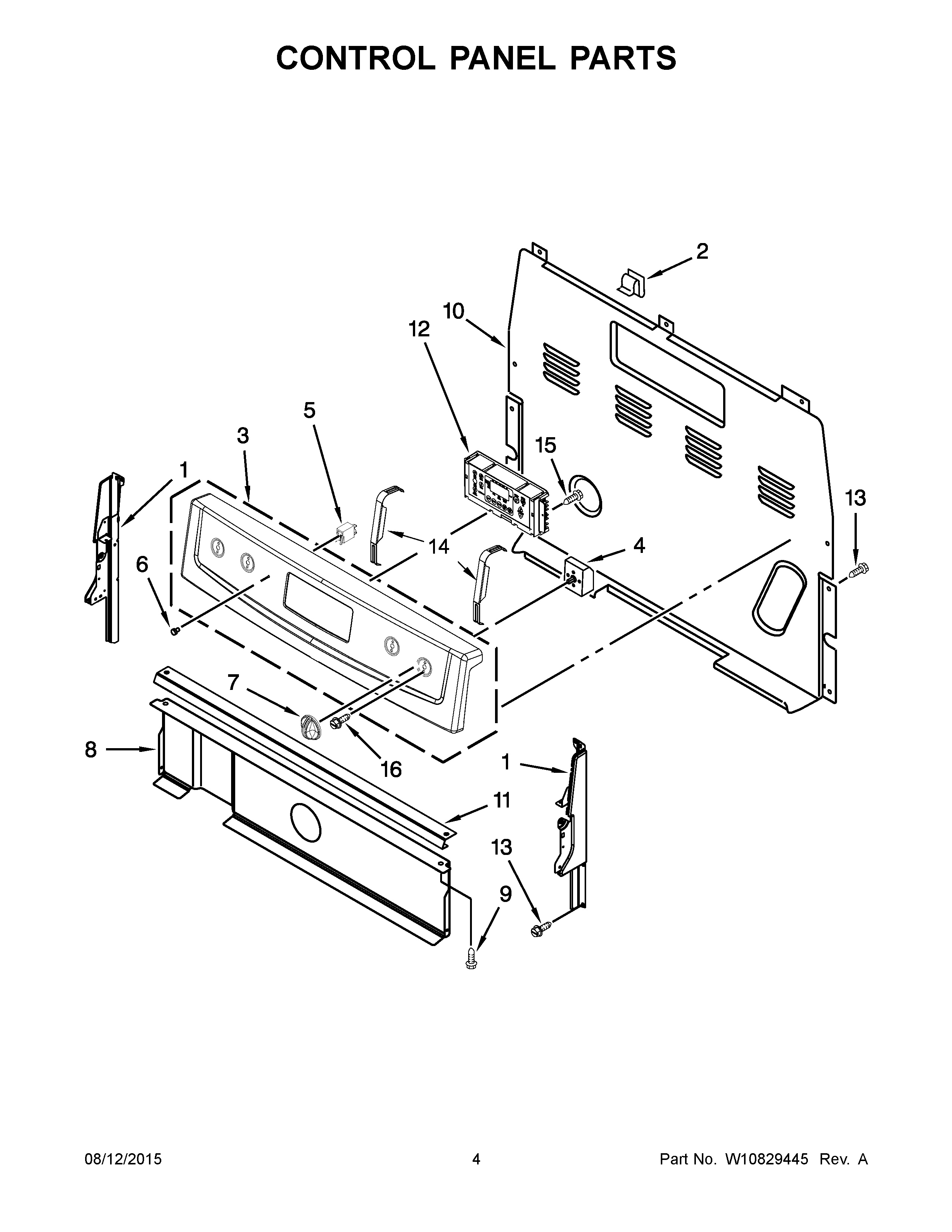

YAER5630BES0 03 – CONTROL PANEL PARTS

YAER5630BES0 03 – CONTROL PANEL PARTS

Written by

in

YAER5630BES0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1AENDCAP (BLACK (RIGHT))
2MAY 8273564
3MAY W10572577
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4BSWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (BLACK)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12CONTROL (LCC95) (BLACK)
13SCREW
14BRACKET, CONTROL
15SCREW
16SCREW
