YAER5630BES0 05 – DOOR PARTS

YAER5630BES0 05 – DOOR PARTS

Written by

in

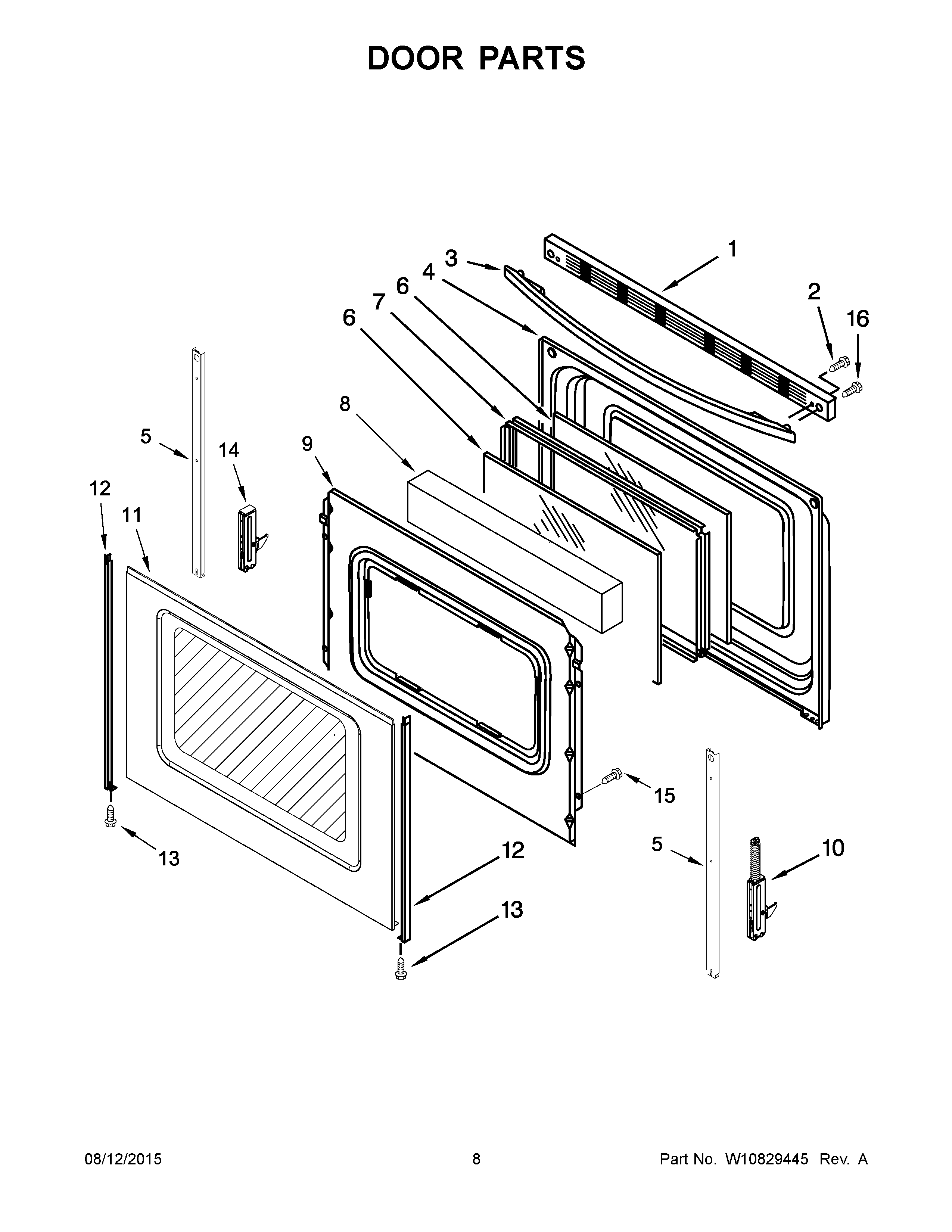

YAER5630BES0 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	STRAP, DOOR
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE (WITH SPRING)
11	GLASS, OUTER (STAINLESS)
12A	TRIM, SIDE (BLACK (LEFT))
12	TRIM, SIDE (BLACK (RIGHT))
13	SCREW
14	HINGE, DOOR (PASSIVE)
15	MAY W10031780
16	SCREW
