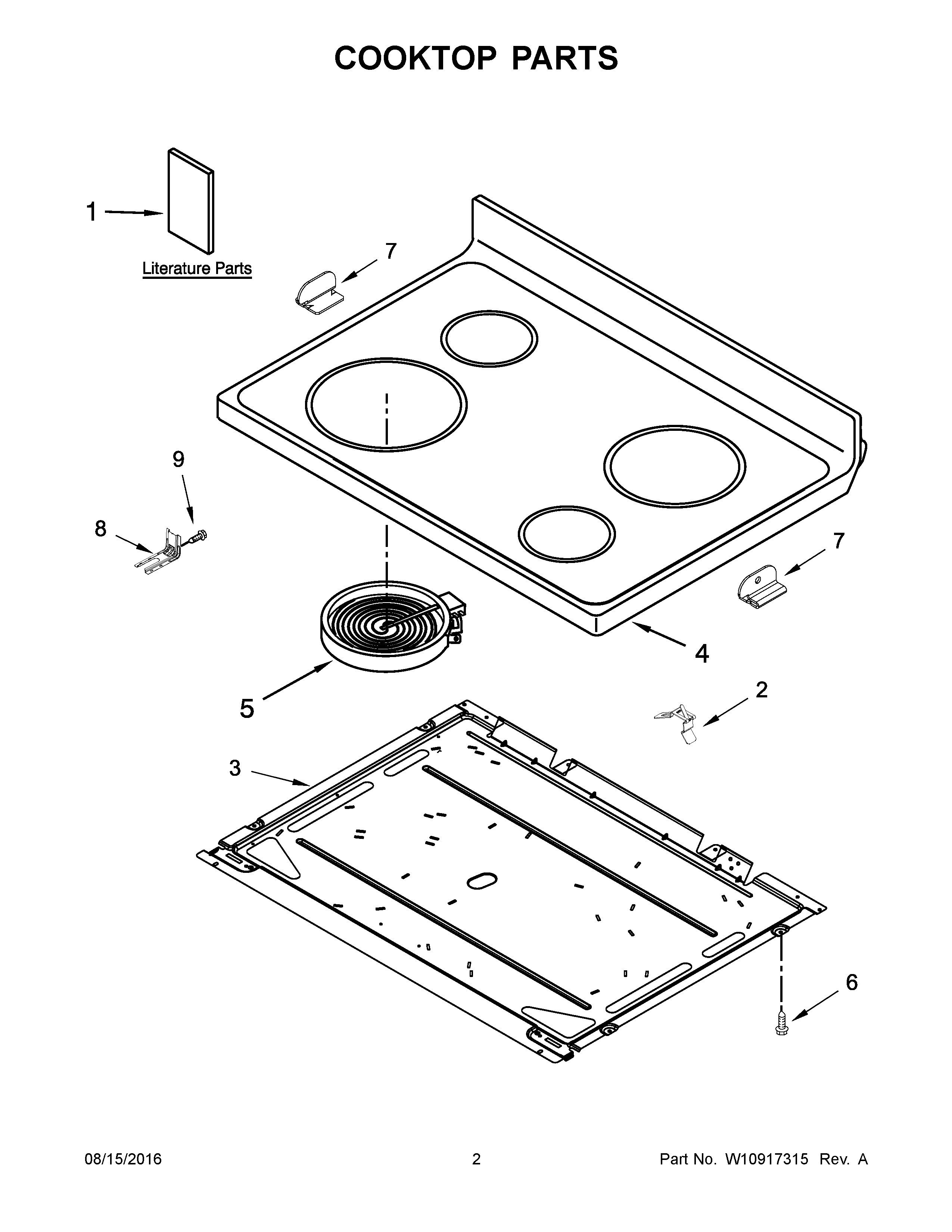

YAER6303MFS0 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	USER INSTRUCTIONS
NI	HARNESS, WIRE (MAIN)
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, WIRE (COOKTOP RIGHT)
1	INSTRUCTIONS, INSTALLATION
1A	TIPS, SAFE COOKING (ENGLISH)
1D	TIPS, SAFE COOKING (FRENCH)
1B	SHEET, TECH
1C	DIAGRAM, WIRING
2	SPRING, ELEMENT
3	PAN, RADIANT ELEMENT
4	COOKTOP (BLACK)
4A	COOKTOP (WHITE)
5A	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
5	ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
6	SCREW
7	BRACKET, COOKTOP (LEFT)
7A	BRACKET, COOKTOP (RIGHT)
8	BRACKET, ANTI-TIP
9	SCREW, ANTI-TIP KIT
