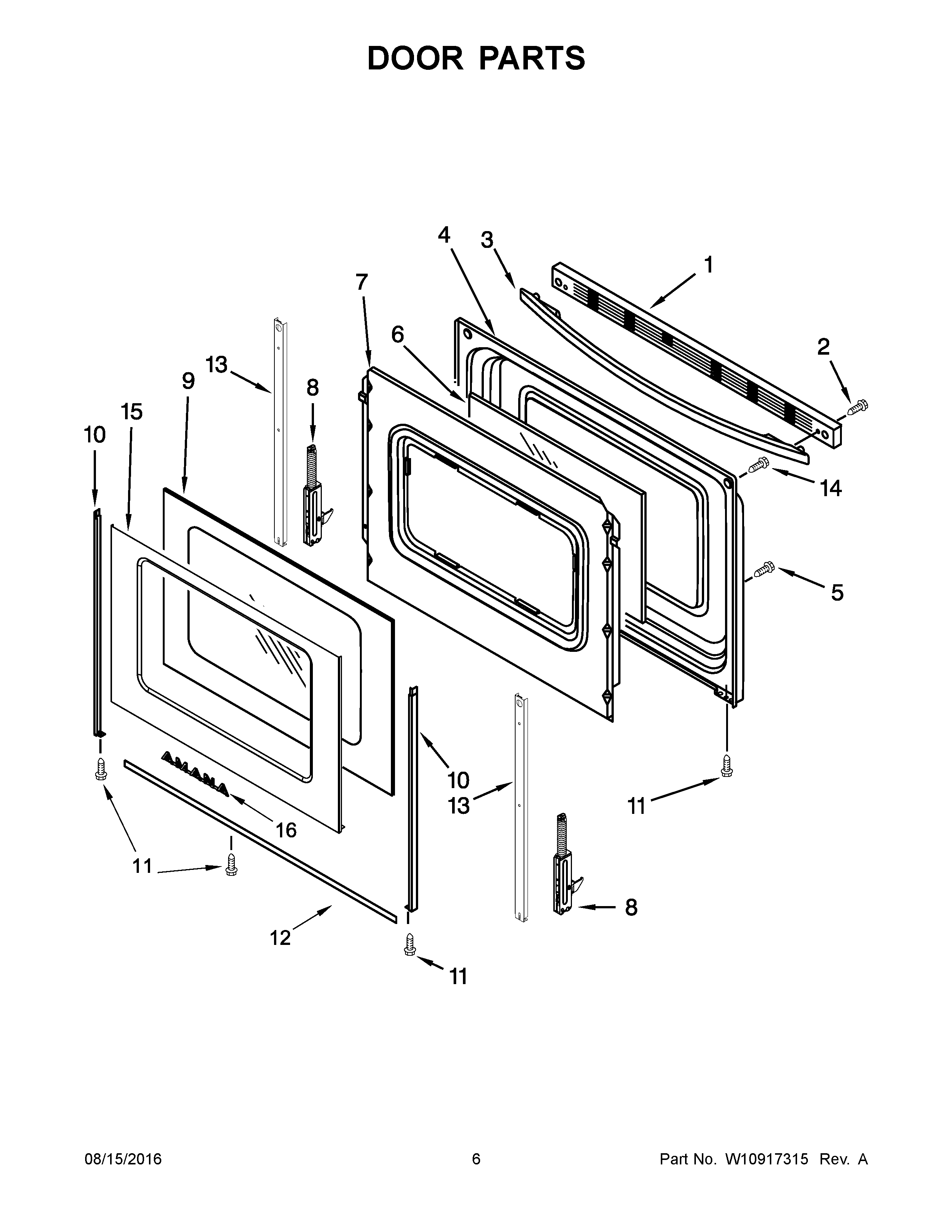

YAER6303MFS0 04 – DOOR PARTSadmin2025-04-26T08:49:12+00:00YAER6303MFS0 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, TOP (WHITE) |
| 2 | SCREW |
| 3 | HANDLE, DOOR (WHITE) |
| 3A | HANDLE, DOOR (STAINLESS) |
| 4 | LINER, DOOR |
| 5 | SCREW |
| 6 | GLASS, INNER |
| 7 | RETAINER, INSULATION |
| 8 | HINGE, ACTIVE |
| 8A | HINGE, DOOR (PASSIVE) |
| 9A | GLASS, OUTER (BLACK) |
| 9 | GLASS, OUTER (WHITE) |
| 10 | TRIM, SIDE (WHITE (LEFT)) |
| 10A | TRIM, SIDE (WHITE (RIGHT)) |
| 11 | SCREW |
| 12 | TRIM, LOWER (WHITE) |
| 13 | STRAP, DOOR |
| 14 | SCREW |
| 15 | GLASS ASSEMBLY, OUTER DOOR (STAINLESS) |
| 16 | BADGE (WHITE) |
| 16A | BADGE (STAINLESS) |
