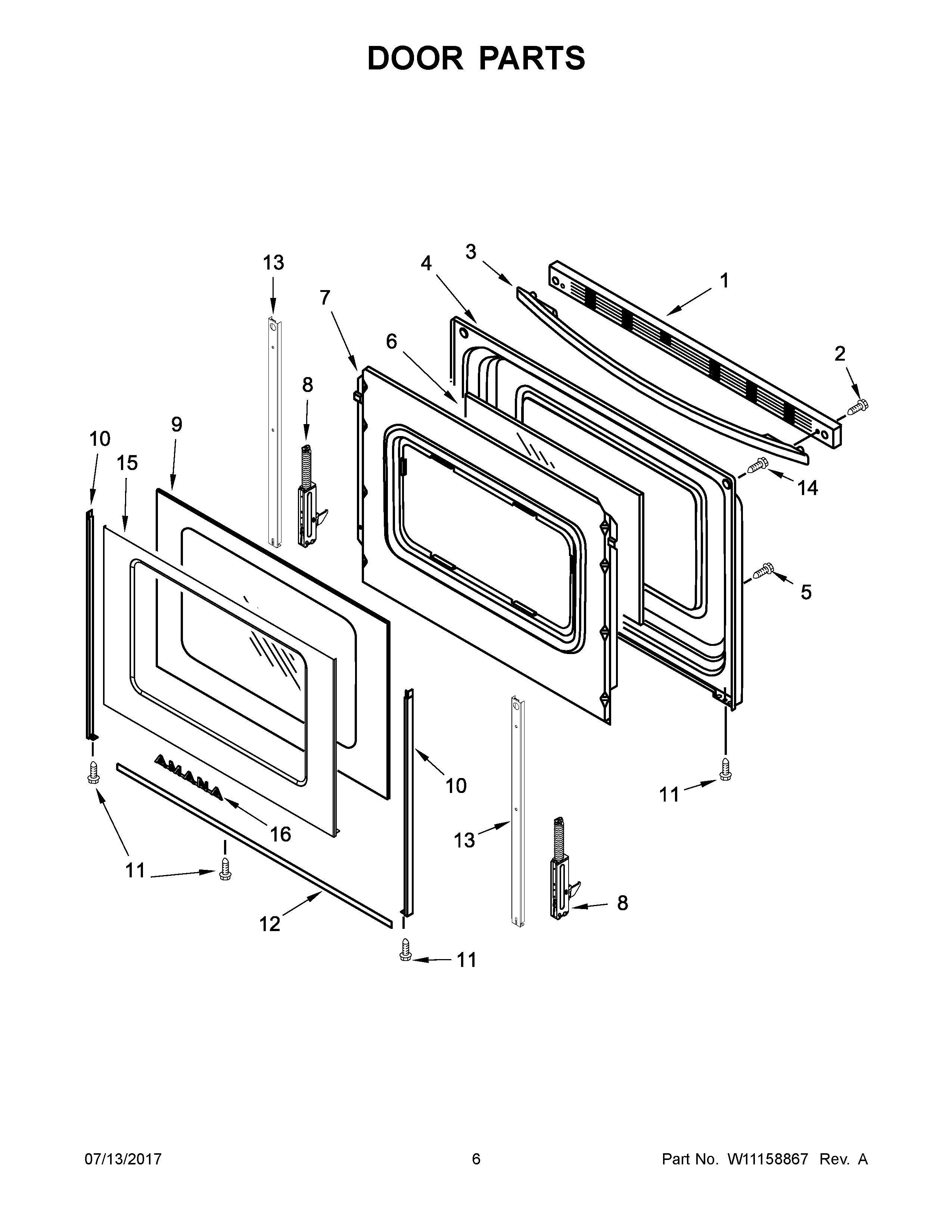

YAER6303MFS1 04 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (WHITE)
3A	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
8A	HINGE, DOOR (PASSIVE)
9A	GLASS, OUTER (BLACK)
9	GLASS, OUTER (WHITE)
10	TRIM, SIDE (WHITE (LEFT))
10A	TRIM, SIDE (WHITE (RIGHT))
11	SCREW
12	TRIM, LOWER (WHITE)
13	STRAP, DOOR
14	SCREW
15	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
16	BADGE (WHITE)
16A	BADGE (STAINLESS)
