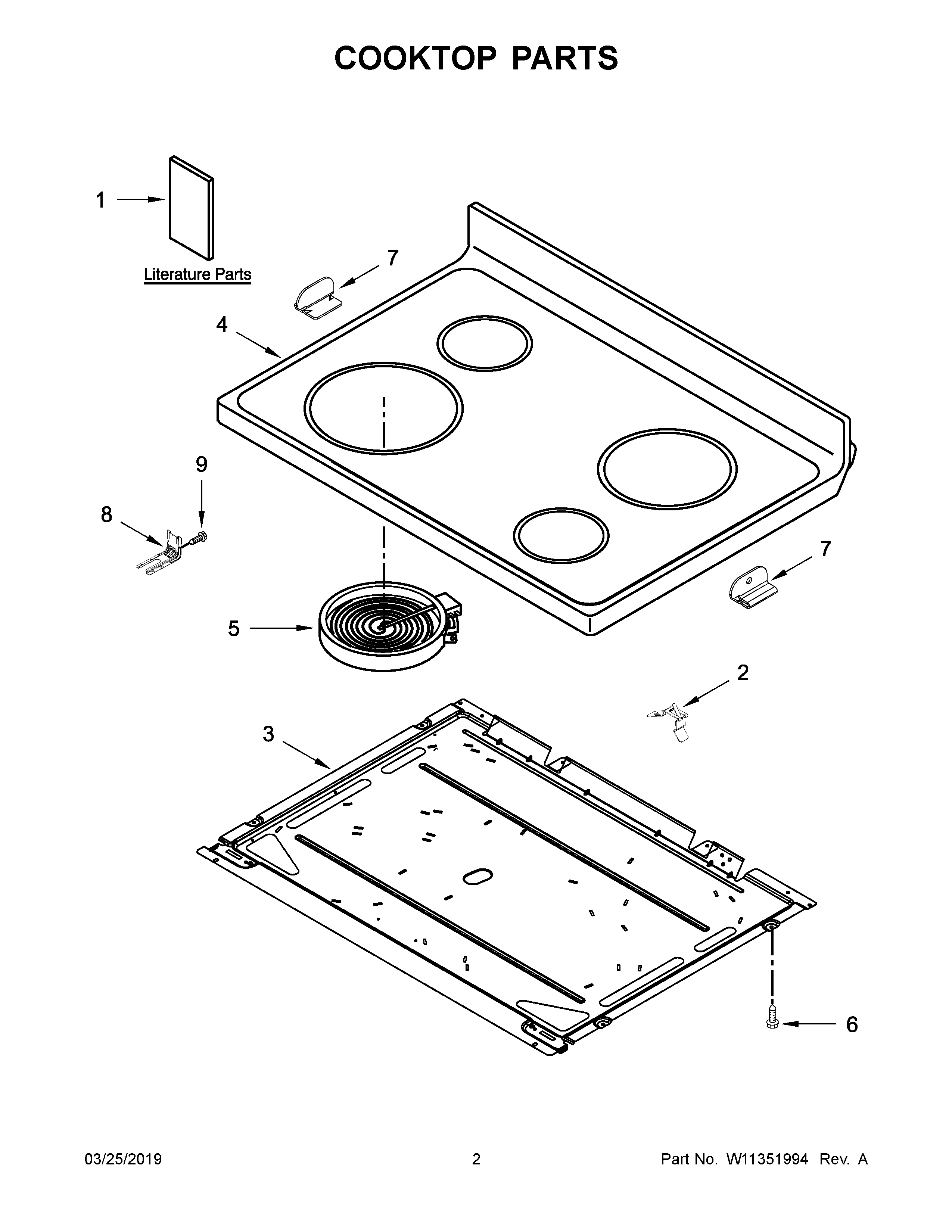

YAER6303MFS2 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (MAIN)
NIHARNESS, COOKTOP (LEFT)
NIHARNESS, COOKTOP (RIGHT)
1AUSER INSTRUCTIONS
1INSTRUCTIONS, INSTALLATION
1BSHEET, TECH
1CDIAGRAM, WIRING
2SPRING, ELEMENT
3PAN, RADIANT ELEMENT
4COOKTOP (BLACK)
5AELEMENT (1200W) (LEFT REAR, RIGHT REAR)
5ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
6SCREW
7BRACKET, COOKTOP (LEFT)
7ABRACKET, COOKTOP (RIGHT)
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
