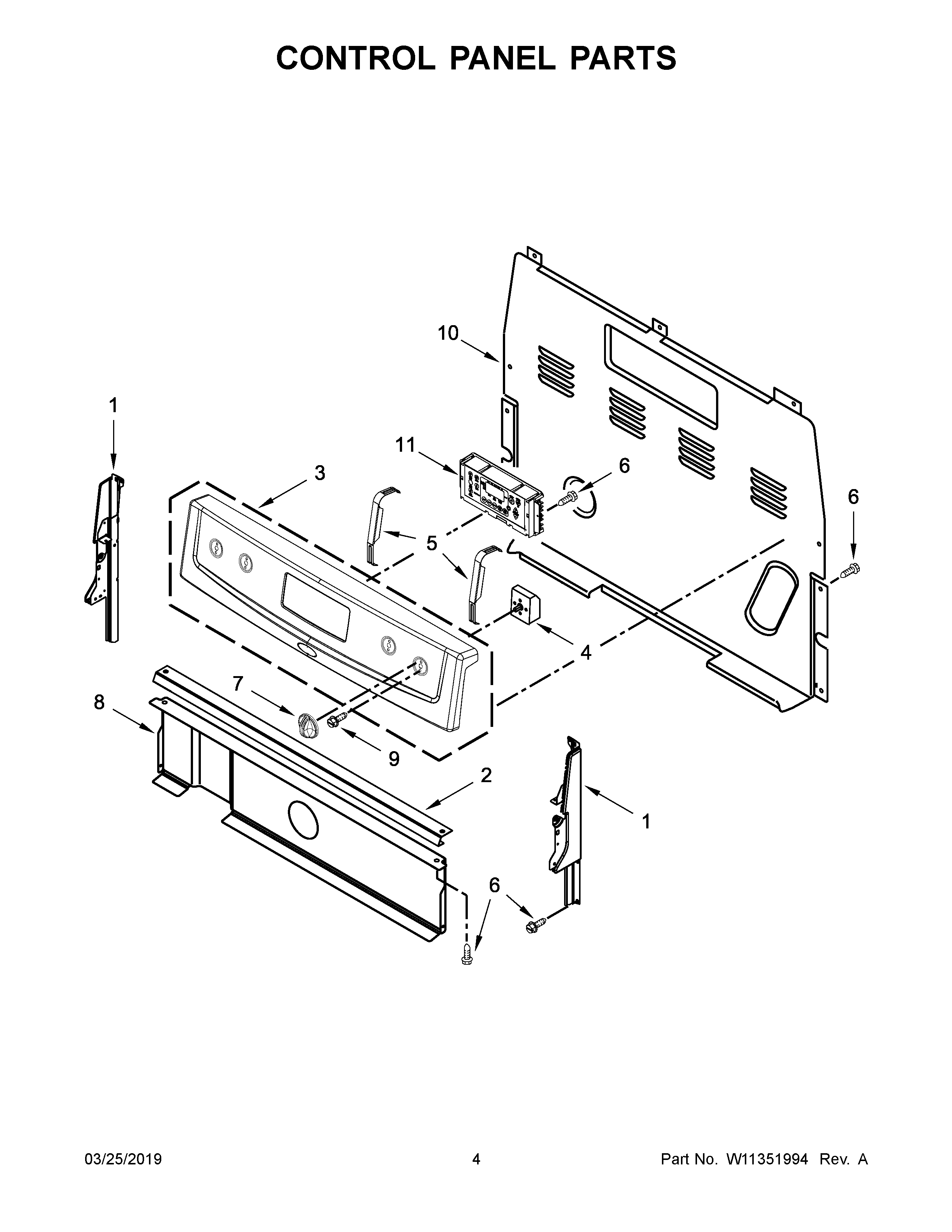

YAER6303MFS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (BLACK (RIGHT))
1ENDCAP (BLACK (LEFT))
2BRACKET, CONSOLE MOUNTING
3PANEL, CONSOLE (STAINLESS)
4ASWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5BRACKET, CONTROL
6SCREW
7KNOBS (STAINLESS)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11CONTROL (LCC95) (BLACK)
