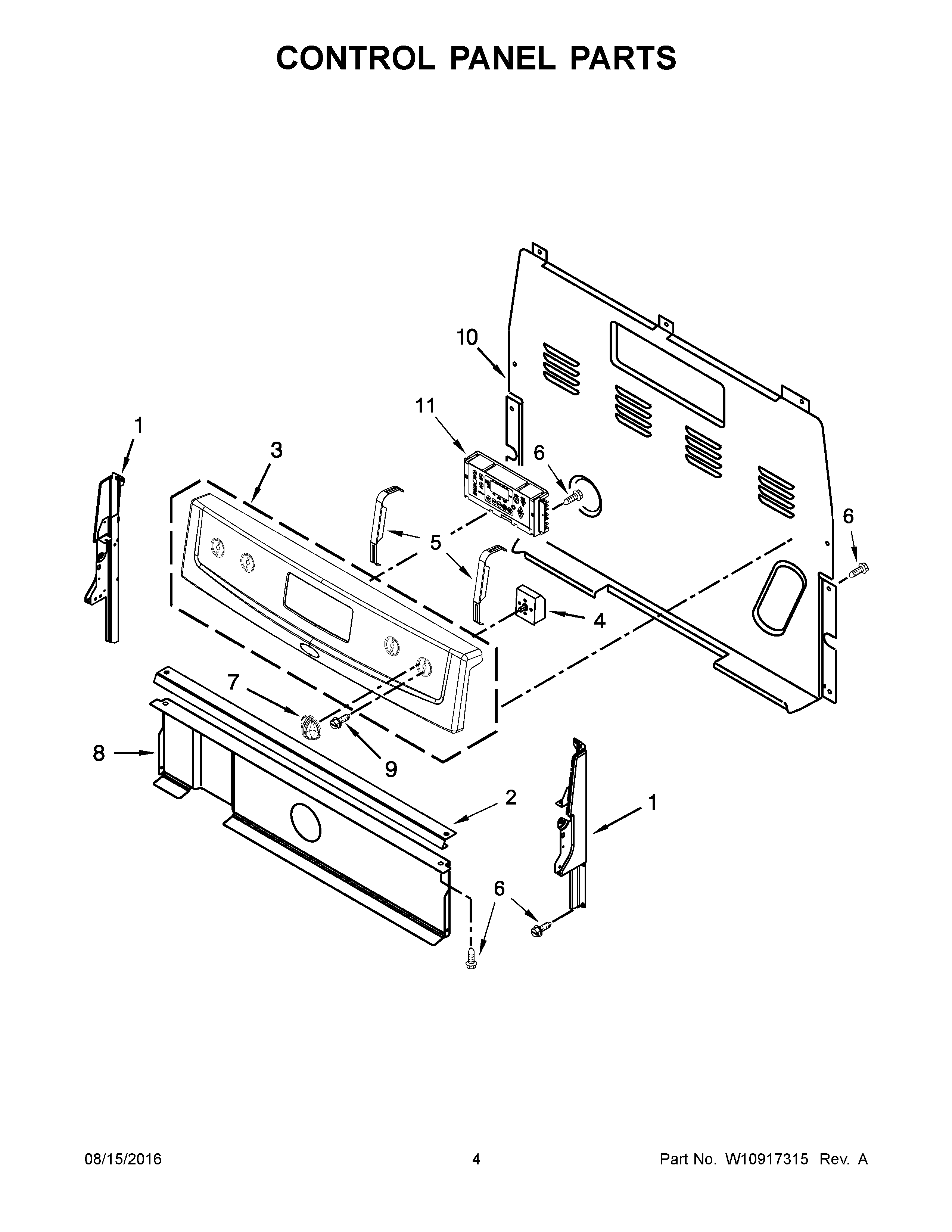

YAER6303MFW0 03 – CONTROL PANEL PARTS

YAER6303MFW0 03 – CONTROL PANEL PARTS

Written by

in

YAER6303MFW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1AENDCAP (WHITE (LEFT))
1BENDCAP (BLACK (RIGHT))
1CENDCAP (WHITE (RIGHT))
2BRACKET, CONSOLE MOUNTING
3PANEL, CONSOLE (WHITE)
3APANEL, CONSOLE (STAINLESS)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
4ASWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5BRACKET, CONTROL
6SCREW
7KNOBS (WHITE)
7AKNOBS (STAINLESS)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11CONTROL, LCC180 (BLACK)
11ACONTROL, LCC180 (WHITE)
