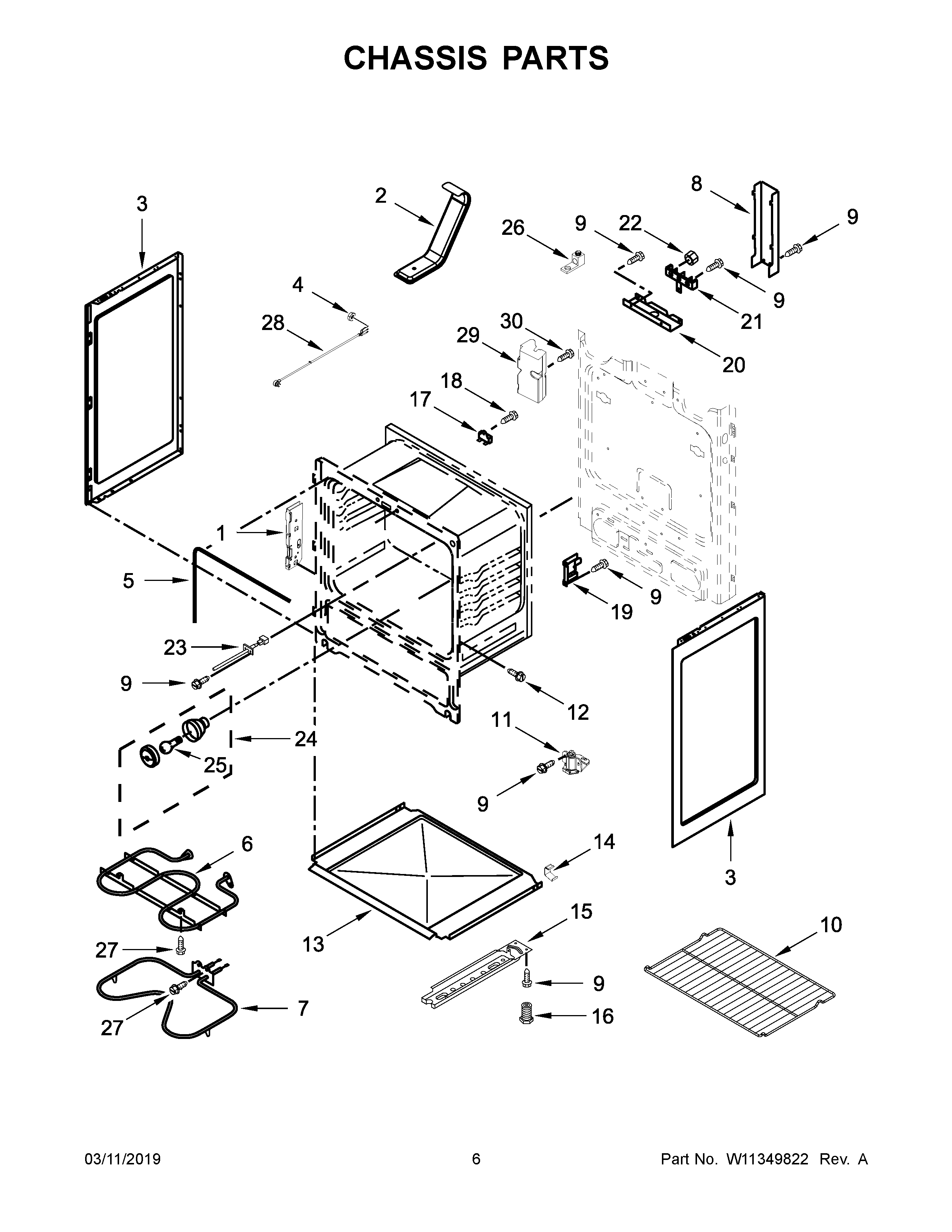

YAER6303MFW2 04 – CHASSIS PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	INSULATION, FLUE
1	RECEIVER, HINGE
2	TUBE, VENT
3	PANEL, SIDE (WHITE)
4	WP7103P027-60 Whirlpool Nut
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	COVER, TERMINAL BLOCK
9	SCREW
10	RACK, OVEN
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	NUT
23	SENSOR, OVEN
24	MAY W11175594
25	BULB, HALOGEN 40 WATTS
26	KIT, BARE WIRE ADAPTER BLOCK
27	SCREW
28	CORD, POWER
29	COUNTERWEIGHT
30	SCREW
