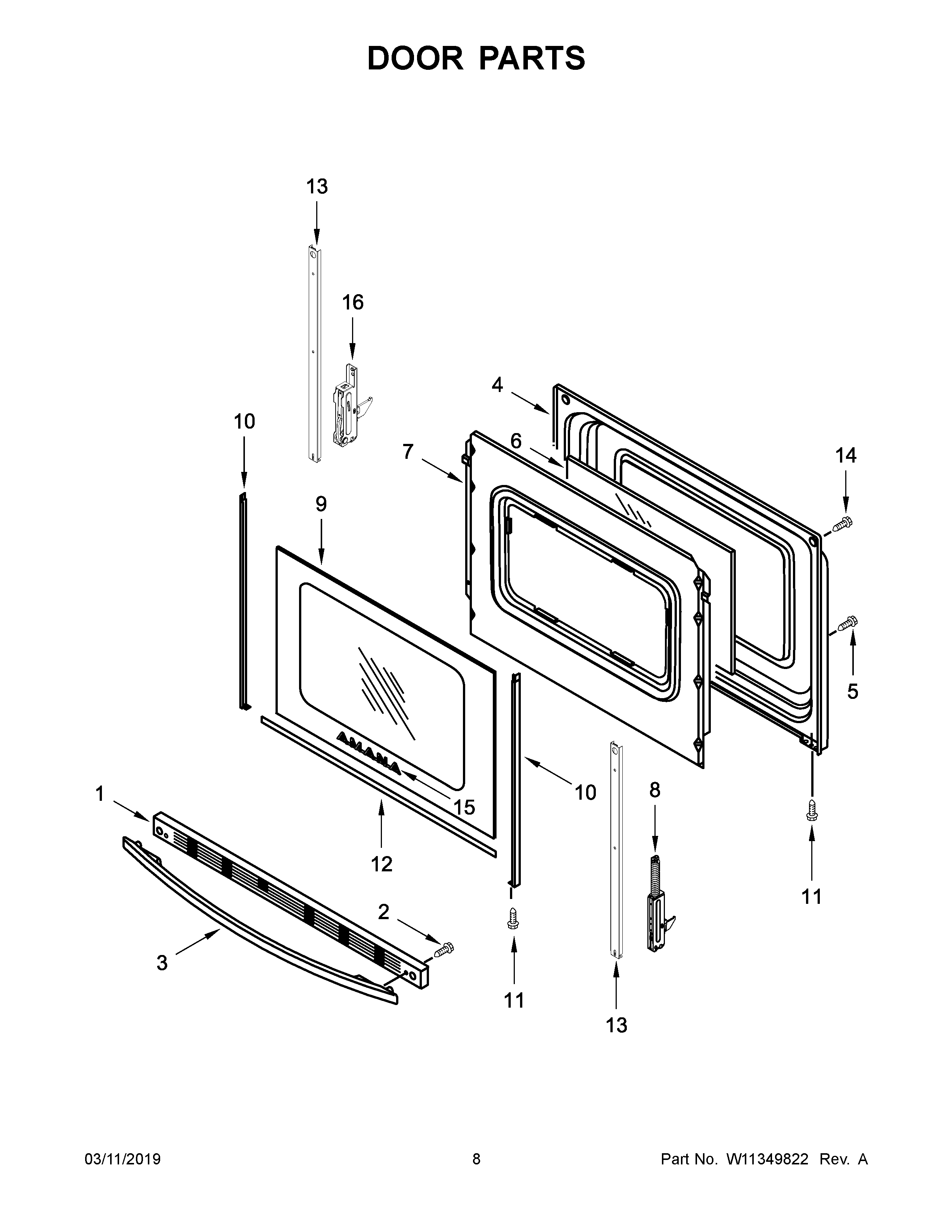

YAER6303MFW2 05 – DOOR PARTS

YAER6303MFW2 05 – DOOR PARTS

Written by

in

YAER6303MFW2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
9	GLASS, OUTER (WHITE)
10	TRIM, SIDE (WHITE (LEFT))
10A	TRIM, SIDE (WHITE (RIGHT))
11	SCREW
12	TRIM, LOWER (WHITE)
13	STRAP, DOOR
14	SCREW
15	BADGE (WHITE)
16	HINGE, DOOR (PASSIVE)
